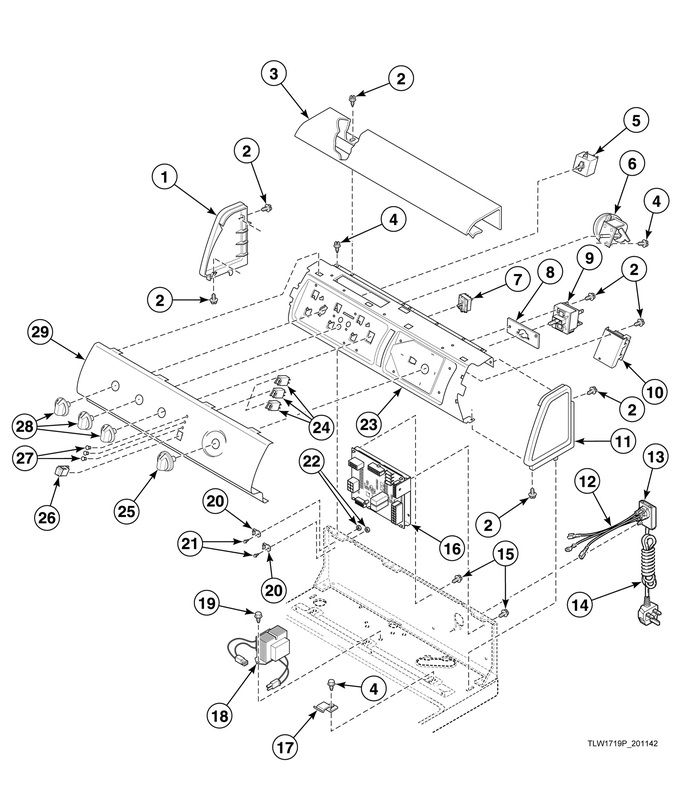

Graphic Panel, Control Support Panel And Controls (drawing 9 of 9)


Lid And Hood Back Panel


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals and extractor tool


Motor And Mounting Bracket (drawing 2 Of 3)


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight (drawing 2 Of 2)


Outer Tub, Cover, Bearing Housing, Pressure hose and counterweight


Power Cord


Shipping Materials And Special Tools


Special Tools


Terminals


Terminals And Clips


Top


Transmission Assembly (drawing 1 Of 2)


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires (drawing 1 Of 3)


Wire Harnesses And Wires (drawing 2 Of 3)


Wire Harnesses And Wires (drawing 3 Of 3)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D504009WP		End Panel (comment: Left)			Immediately	$ 22.20
2	D501086		Screw			Immediately	$ 6.95
3	39905W		Top Cover				$ 48.89
4	WP90767		Screw   (Replaces: 23962)			Immediately	$ 7.04
5	35115		Temperature Switch (comment: 3 Position)				$ 30.67
6	39286P		Pressure Switch				$ 128.41
7	803568		Selector Switch				$ 46.54
8	801390		Cycle Switch Bracket		Appelez-nous	-
9	801240		Cycle Switch			Immediately	$ 57.03
10	202450		Control Assembly		Appelez-nous	-
11	D504008WP		End Panel (comment: Right)				$ 19.23
12	39923		Lead-in Wire Harness Assembly				$ 32.57
13	39922		Cable Connection Box		Appelez-nous	-
14	39931		Power Cord Assembly				$ 64.46
15	D501524		Screw		Appelez-nous	-
16	202843P		Control Assembly		Appelez-nous	-
17	35358		Hold-down Clip				$ 6.95
18	201616P		Transformer		Appelez-nous	-
19	D503661		Screw		Appelez-nous	-
20	210100		Resistor (comment: Mounted To Top Panel; Models Starting Serial Nos. Beginning 1403)				$ 23.93
21	685837		Screw		Appelez-nous	-
22	802343		Nut		Appelez-nous	-
23	202458		Control Support Panel		Appelez-nous	-
24	801356		Indicator Light		Appelez-nous	-
25	803168P		Knob Assembly			Immediately	$ 9.68
26	801434W		Push-to-start Switch			Immediately	$ 22.66
27	801435		Indicator Light Lens				$ 6.95
28	803119P		Control Knob Assembly			Immediately	$ 11.21
29	202448W		Graphic Panel (comment: Models Through Serial No. 1404009800)		Appelez-nous	-
29	203131W		Graphic Panel (comment: Models Starting Serial No. 1404009801)		Appelez-nous	-
