Agitator, Fabric Softener Dispenser, Drive Bell, Hub and lip seal kit and washtub (drawing 1 Of 2)


Belt, Pump And Idler Assembly (drawing 2 Of 4)


Belt, Pump And Idler Assembly (drawing 3 Of 4)


Electric Drain Pump With Plastic Drain Hose And Siphon Break Kit

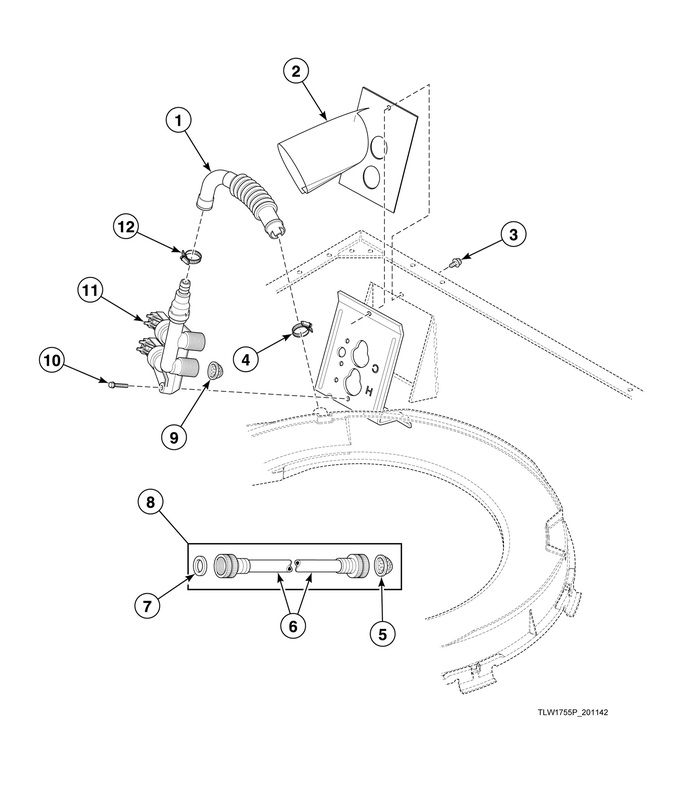

Fill Hose, Mixing Valve-to-tub Cover Hose And Mixing Valve - Model Awna62sn301aw01


Front Panel, Base Assembly And Cabinet Kit


Graphic Panel, Control Support Panel And Controls (drawing 9 of 9)


Lid And Hood Back Panel


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals and extractor tool


Motor And Mounting Bracket (drawing 2 Of 3)


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight (drawing 2 Of 2)


Outer Tub, Cover, Bearing Housing, Pressure hose and counterweight


Power Cord


Shipping Materials And Special Tools


Special Tools


Terminals


Terminals And Clips


Top


Transmission Assembly (drawing 1 Of 2)


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires (drawing 1 Of 3)


Wire Harnesses And Wires (drawing 2 Of 3)


Wire Harnesses And Wires (drawing 3 Of 3)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	202472		Mixing Valve-to-tub Cover Hose				$ 22.80
2	202899		Mixing Valve Shield (comment: Models Starting Serial No. 1404009801)		Appelez-nous	-
3	WP27001200		Screw   (Replaces: 33562)				$ 6.91
4	800803		Hose Clamp				$ 6.58
5	802254		Washer (comment: Flow Restrictor; Water Pressure Reducer; Available For Water Pressure Up To But Not Exceeding 120 Psi)				$ 49.18
5	803615		Washer (comment: Filter Screen)			Immediately	$ 4.23
6	37380		Fill Hose (comment: 8 Feet; 1 U.s. Standard Thread And 1 Metric Thread Hose Coupling)		Appelez-nous	-
6	20618		Fill Hose (comment: 10 Feet; 2 U.s. Standard Thread Hose Couplings)		Appelez-nous	-
6	20617		Fill Hose (comment: 8 Feet; 2 U.s. Standard Thread Hose Couplings)				$ 44.15
6	2020454		Fill Hose (comment: Models Starting Serial No. 1404009801; 4 Feet; 1 U.s. Standard Thread And 1 Metric Thread Hose Coupling)   (Replaces: 202800)				$ 69.46
6	37381		Fill Hose (comment: 10 Feet; 1 U.s. Standard Thread And 1 Metric Thread Hose Coupling)		Appelez-nous	-
7	20290		Washer		Appelez-nous	-
8	38349P		Fill Hose Kit (comment: 5 Feet; Includes 2 Of Item 6; 1 U.s. Standard Thread And 1 Metric Thread Hose Coupling)			Immediately	$ 45.69
8	F200116		Water Hose (comment: 5 Feet; Includes Items 4 And 6; 2 U.s. Standard Thread Hose Couplings)				$ 28.46
9	24122		Mixing Valve Screen				$ 8.42
10	39397		Screw		Appelez-nous	-
11	203145		Mixing Valve (comment: Models Starting Serial Nos. Beginning 1412)		Appelez-nous	-
11	202396		Mixing Valve (comment: Models Through Serial Nos. Beginning 1412)				$ 33.30
12	36801		Hose Clamp			Immediately	$ 9.22
