Diagram for Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing valve and bracket

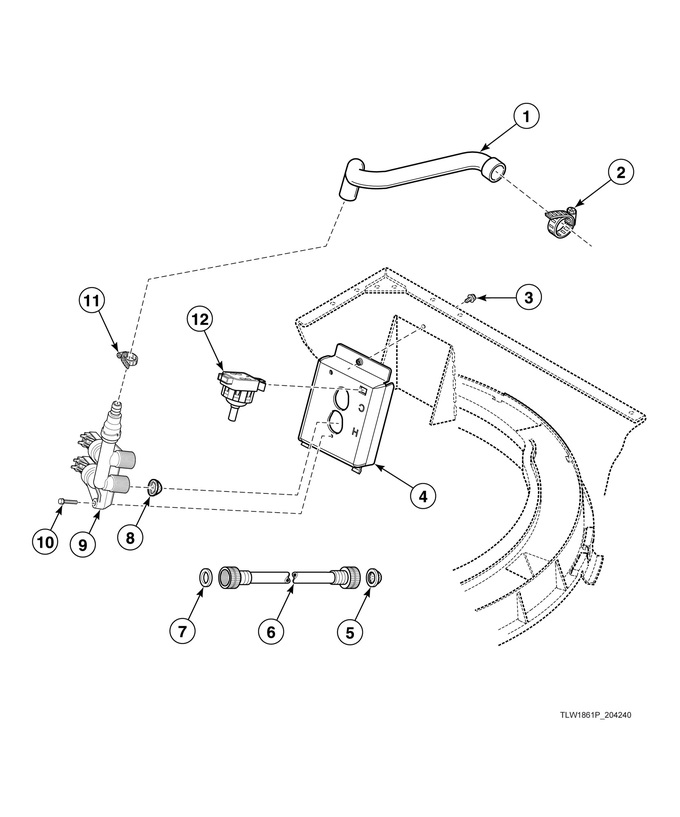

Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing valve and bracket

Diagram for Front Panel, Base Assembly And Cabinet Kit
Front Panel, Base Assembly And Cabinet Kit

Diagram for Graphic Panel, Control Support Panel And Controls Starting serial no. 1810000001
Graphic Panel, Control Support Panel And Controls Starting serial no. 1810000001

Diagram for Graphic Panel, Control Support Panel And Controls Through serial nos. beginning 1809
Graphic Panel, Control Support Panel And Controls Through serial nos. beginning 1809

Diagram for Lead-in Cord And Cable Ties
Lead-in Cord And Cable Ties

Diagram for Lid Switch Assembly
Lid Switch Assembly

Diagram for Motor, Mounting Bracket And Belt
Motor, Mounting Bracket And Belt

Diagram for Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight
Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight

Diagram for Shipping Brace, Plug And Special Tools
Shipping Brace, Plug And Special Tools

Diagram for Top, Lid And Hood Back Panel
Top, Lid And Hood Back Panel

Diagram for Weldment And Bearing Assembly, Drive Shaft And Pulley
Weldment And Bearing Assembly, Drive Shaft And Pulley


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 205703 Valve To Inlet Hose (comment: Starting Serial No. 1810000001)   (Replaces: 204400) Appelez-nous -
1 202884 Valve To Inlet Hose (comment: Through Serial No. 1810000001) Special Order $ 10.43

2 800803 Hose Clamp Special Order $ 6.58

3 WP27001200 Screw   (Replaces: 33562) Special Order $ 6.91

4 204117 Mixing Valve Mounting Bracket (comment: Through Serial No. 1810000001) Appelez-nous -
4 203558 Mixing Valve Mounting Bracket (comment: Starting Serial No. 1810000001) Appelez-nous -
5 803615 Washer (comment: Filter Screen) In-Stock Immediately $ 4.23

5 802254 Washer (comment: Flow Restrictor; Water Pressure Reducer; Available For Water Pressure Up To But Not Exceeding 120 Psi) Special Order $ 49.18

6 203720 Fill Hose (comment: 4 Feet; Marked Blue For Cold Water) Special Order $ 24.64

6 203719 Fill Hose (comment: 4 Feet; Marked Red For Hot Water) Special Order $ 24.64

7 20290 Washer Appelez-nous -
8 24122 Mixing Valve Screen Special Order $ 8.42

9 205547P Mixing Valve (comment: Through Serial No. 1810000001)   (Replaces: 202395P) In-Stock Immediately $ 57.57

9 205765 Mixing Valve (comment: Starting Serial No. 1810000001)   (Replaces: 203741) In-Stock Immediately $ 56.48

10 39397 Screw Appelez-nous -
11 36801 Hose Clamp In-Stock Immediately $ 9.22

12 203843 Pressure Sensor In-Stock Immediately $ 13.03
