Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 203968 Tub Cover Assembly (comment: Includes Item 2) In-Stock Immediately $ 20.36

2 38359 Tub Cover Gasket Special Order $ 12.08

3 204383 Outer Tub Kit (comment: Includes Item 14 Installed) In-Stock Immediately $ 576.59

3 203603P Outer Tub Assembly Special Order $ 311.71

4 37575 Leg Spring (comment: Marked With Blue Paint; Use To Replace Four Rear Springs) In-Stock Immediately $ 11.03

5 39249 Washer Special Order $ 6.95

6 35148 Screw Special Order $ 6.95

7 203599 Bracket Special Order $ 1.97

8 803415 Out-of-balance Switch Assembly In-Stock Immediately $ 13.86

9 201521 Leg Spring (comment: Marked With Green Paint; Use To Replace Two Front Springs) In-Stock Immediately $ 14.46

10 39566 Screw In-Stock Immediately $ 6.95

11 205612 Counterweight Assembly   (Replaces: 38769) In-Stock Immediately $ 36.36

12 35369 Screw In-Stock Immediately $ 6.95

13 27926 Leg Plate Appelez-nous -
14 200996P Sealant (comment: Use With Hub And Lip Seal Kit) In-Stock Immediately $ 180.93

14 766P3A Hub And Lip Seal Kit In-Stock Immediately $ 225.45

15 D500049 Warning Label Appelez-nous -
16 29175 Grommet Special Order $ 8.56

17 COMM PART Pressure Bulb   (Replaces: 30907) Appelez-nous -
18 WP596669 Hose Clamp   (Replaces: 39282) In-Stock Immediately $ 7.56

19 21036 Cable Clip Special Order $ 62.49

20 203802 Tubing Special Order $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

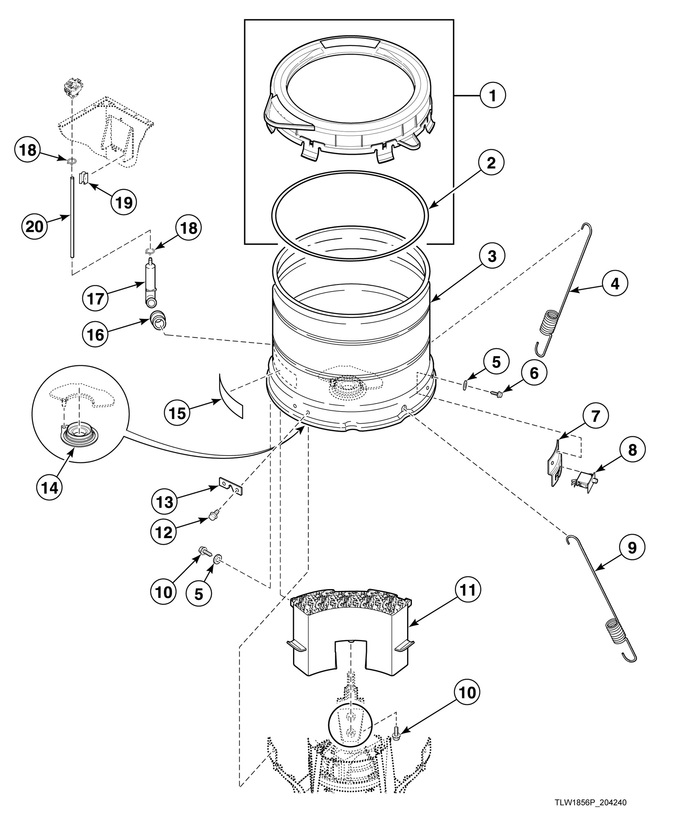

Diagram for AWN43RSN115TW01
