SELECT A DIAGRAM

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and lip seal kit and washtub


Drain Pump, Drain Hose And Siphon Break Kit


Drive Control, Wire Harnesses And Wires


Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing valve and bracket


Front Panel, Base Assembly And Cabinet Kit

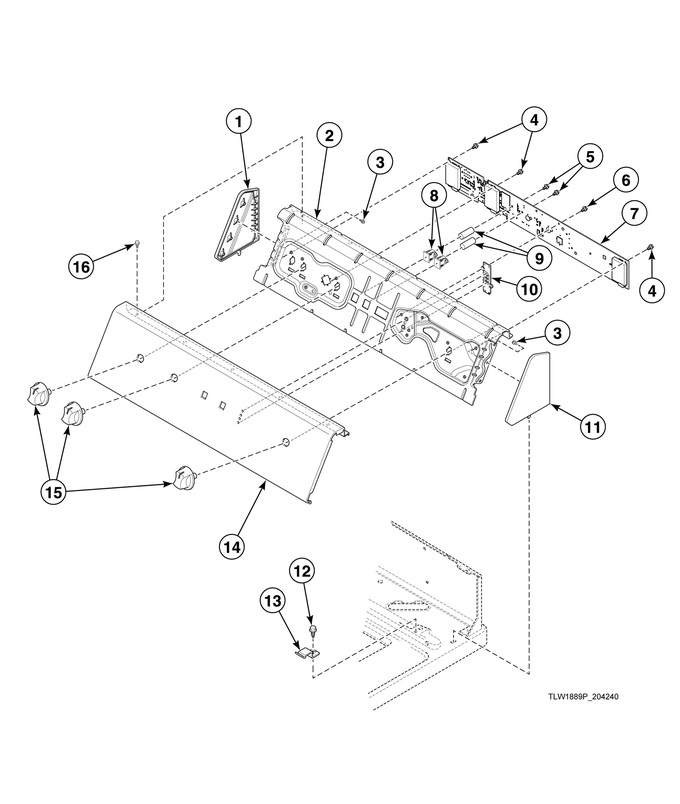

Graphic Panel, Control Support Panel And Controls Starting serial no. 1810000001


Graphic Panel, Control Support Panel And Controls Through serial nos. beginning 1809


Lead-in Cord And Cable Ties


Lid Switch Assembly


Motor, Mounting Bracket And Belt


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight


Shipping Brace, Plug And Special Tools


Top, Lid And Hood Back Panel


Weldment And Bearing Assembly, Drive Shaft And Pulley


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	203730W		End Cap (comment: Left)				$ 11.19
2	203840		Control Support Panel				$ 41.53
3	203799		Screw				$ 0.49
4	204342		Screw		Appelez-nous	-
5	800548		Screw			Immediately	$ 3.88
6	204503		Screw		Appelez-nous	-
7	204065P		Control Assembly   (Replaces: 204065)				$ 170.87
8	204266		Capacitive Touch Switch			Immediately	$ 6.95
9	204365		Foam			Immediately	$ 6.95
10	204488		Led Display Assembly				$ 11.07
11	203729W		End Cap (comment: Right)				$ 11.81
12	WP90767		Screw   (Replaces: 23962)			Immediately	$ 7.04
13	35358		Hold-down Clip				$ 6.95
14	204587		Graphic Panel		Appelez-nous	-
15	806597		Knob Assembly			Immediately	$ 12.08
16	807075		Screw				$ 0.24

    View Diagram in Separate Window       Print Part List
