Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 203808 Hood Harness In-Stock Immediately $ 59.72

2 204572 Pressure Sensor Harness (comment: Through Serial Nos. Beginning 1809)   (Replaces: 204054) Special Order $ 13.14

2 204113 Pressure Sensor Harness (comment: Starting Serial No. 1810000001) Special Order $ 14.31

3 204715 Control Drive Harness   (Replaces: 203659) In-Stock Immediately $ 119.86

4 203664 Lid Lock Harness Special Order $ 13.57

5 203661 Drain Pump Harness Special Order $ 71.98

6 203799 Screw Special Order $ 0.49

7 31645 Screw Special Order $ 3.34

8 203612 Drive Cover Special Order $ 23.15

9 203657P Drive Control Assembly In-Stock Immediately $ 641.93

NA 45380 12 Gauge Wire (comment: Orange; Order Wire By Foot And Terminals As Required) Special Order $ 8.43

NA 45001 18 Gauge Wire (comment: Black; Order Wire By Foot And Terminals As Required) Special Order $ 0.78


    View Diagram in Separate Window     Print Icon   Print Part List

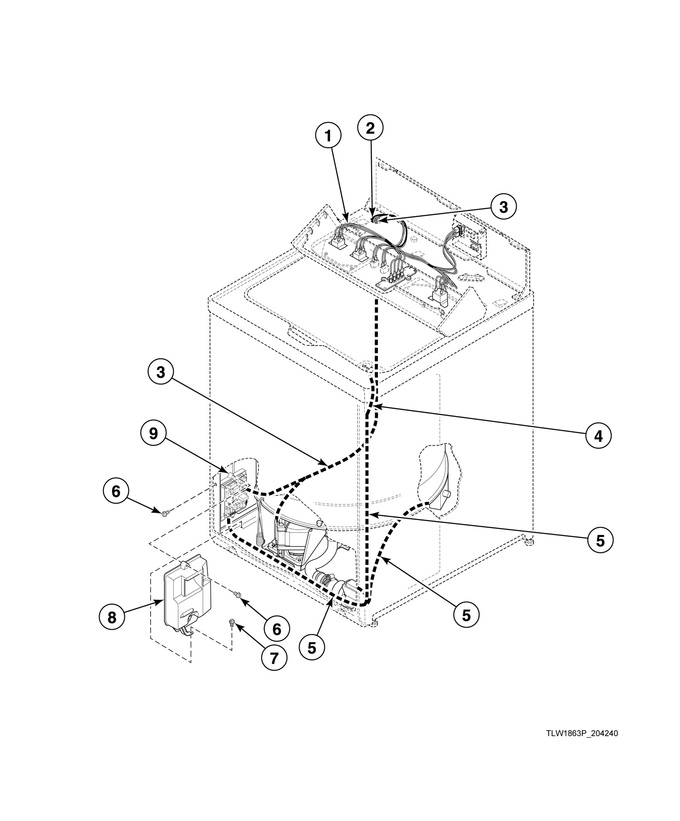

Diagram for AWN63RSN115CW01
