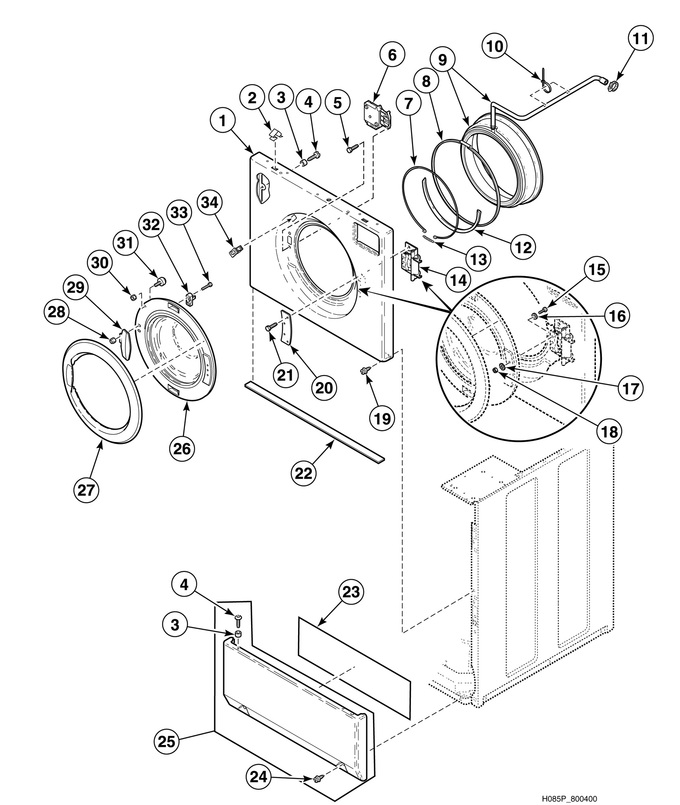

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	800435WP		Front Panel Assembly (comment: White; Includes Items 3, 4, 6, 800437 Hinge Plate, 800336* Front Panel And 800436* Door Assembly)		Appelez-nous	-
1	800435LP		Front Panel Assembly (comment: Almond; Includes Items 3, 4, 6, 800437 Hinge Plate, 800336* Front Panel And 800436* Door Assembly)		Appelez-nous	-
1	800435QP		Front Panel Assembly (comment: Bisque; Includes Items 3, 4, 6, 800437 Hinge Plate, 800336* Front Panel And 800436* Door Assembly)		Appelez-nous	-
2	WP22001650		Speed Clip   (Replaces: 28835)			Immediately	$ 7.34
3	56079		Panel Locator			Immediately	$ 6.95
4	39733		Screw				$ 6.95
5	800548		Screw			Immediately	$ 3.88
6	685429		Door Latch/switch Assembly				$ 137.60
7	800438		Wire Clamp Ring				$ 6.25
8	685743P		Door Seal Clamp				$ 40.18
9	800232P		Door Seal And Hose Assembly Kit (comment: Black)				$ 273.84
9	801784P		Door Seal And Hose Assembly Kit (comment: Gray)				$ 162.14
10	39037		Cable Tie				$ 3.00
11	36801		Hose Clamp			Immediately	$ 9.22
12	N/A		Foam Tape (comment: Front Panel Door Opening)		Appelez-nous	-
13	800346		Extension Spring				$ 6.95
14	685460		Door Hinge Assembly		Appelez-nous	-
15	02916		Screw		Appelez-nous	-
16	35917		Washer		Appelez-nous	-
17	M400017		Washer		Appelez-nous	-
18	WPW10139757		Nut   (Replaces: 52566)				$ 7.16
19	D503661		Screw		Appelez-nous	-
20	685470		Hinge Plate		Appelez-nous	-
21	685862		Screw		Appelez-nous	-
22	N/A		Foam Tape (comment: 1 Inch By 26 Inches)		Appelez-nous	-
23	685368		Access Panel Damper				$ 9.73
24	WP27001200		Screw (comment: Hex Head)   (Replaces: 33562)				$ 6.91
24	63262		Screw (comment: Torx Head; Optional, For Security)   (Replaces: 62853)			Immediately	$ 23.29
25	D514250WP		Access Panel Assembly (comment: White)			Immediately	$ 88.51
25	D510069LP		Access Panel (comment: Almond)		Appelez-nous	-
25	D514250Q		Access Panel Assembly (comment: Bisque)		Appelez-nous	-
26	N/A		Inner Door And Glass (comment: Use 800435*p Front Panel Assembly)		Appelez-nous	-
27	N/A		Door Bezel (comment: Use 800435*p Front Panel Assembly)		Appelez-nous	-
28	685846		Nut				$ 6.95
29	685438		Door Handle		Appelez-nous	-
30	M0282009		Nut   (Replaces: 23951)				$ 12.06
31	800233		Bumper		Appelez-nous	-
32	685430		Locking Catch				$ 20.23
33	801993		Screw			Immediately	$ 6.95
34	800211		Door Switch				$ 12.14

    View Diagram in Separate Window       Print Part List
