| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
56128 |
|
Bumper Pad |
|
|
|
$ 6.95 |
|
|
| 2 |
56079 |
 |
Panel Locator |
|
|
Immediately |
$ 6.95 |
|
|
| 3 |
39733 |
|
Screw |
|
|
|
$ 6.95 |
|
|
| 4 |
800004LP |
|
Cabinet Panel Kit (comment: Almond; Left; Includes Gusset With Hardware) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
COMM PART |
|
Cabinet Panel Kit (comment: Bisque; Left; Includes Gusset With Hardware) (Replaces: 800004QP) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
800004WP |
|
Cabinet Panel Kit (comment: White; Left; Includes Gusset With Hardware) |
|
|
|
$ 238.45 |
|
|
| 5 |
D503661 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 6 |
800010P |
|
Rear Panel |
|
|
|
$ 117.16 |
|
|
| 7 |
685928 |
|
Screw Label (comment: Left Hand Thread) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
D510136 |
 |
Top Hinge |
|
|
|
$ 6.95 |
|
|
| 9 |
800011 |
|
Rear Access Panel |
|
Appelez-nous
|
- |
|
|
|
| 10 |
806492 |
|
Side Panel Kit (comment: White; Right; Includes 801024 Dispenser Plate With Hardware) (Replaces: 800005WP) |
|
|
|
$ 296.34 |
|
|
| 10 |
800005QP |
|
Side Panel Kit (comment: Bisque; Right; Includes 801024 Dispenser Plate With Hardware) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
N/A |
|
Side Panel Kit (comment: Almond; Right; Includes 801024 Dispenser Plate With Hardware) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WP210385 |
 |
Nut (comment: For 1/2 Inch Leveling Leg) (Replaces: 21899) |
|
|
|
$ 6.26 |
|
|
| 12 |
22003428 |
 |
Leveling Leg (comment: 1/2 Inch Leveling Leg) (Replaces: 34319) |
|
|
Immediately |
$ 14.41 |
|
|
| 13 |
155P3 |
 |
Anchor (comment: Includes 4 Rubber Discs With Adhesive Backing) |
|
|
Immediately |
$ 65.05 |
|
|
| 14 |
D501855 |
 |
Rubber Foot (comment: Prevents Movement On Smooth Surfaces. Install Over Existing Rubber Feet) |
|
|
|
$ 8.43 |
|
|
| 15 |
34318 |
 |
Rubber Foot (comment: For 1/2 Inch Leveling Leg) |
|
|
Immediately |
$ 4.74 |
|
|
| 16 |
34318 |
|
Rubber Foot (comment: For 3/8 Inch Leveling Leg) |
|
|
Immediately |
$ 4.74 |
|
|
| 17 |
800014 |
|
Leveling Leg (comment: 3/8 Inch Leveling Leg) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP62739 |
 |
Nut (comment: For 3/8 Inch Leveling Leg) (Replaces: 20274) |
|
|
|
$ 6.85 |
|
|
| 19 |
800015 |
|
Leveling Leg Spacer (comment: For 3/8 Inch Leveling Leg) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
803876 |
|
Base Assembly (Replaces: 802245) |
|
|
|
$ 289.03 |
|
|

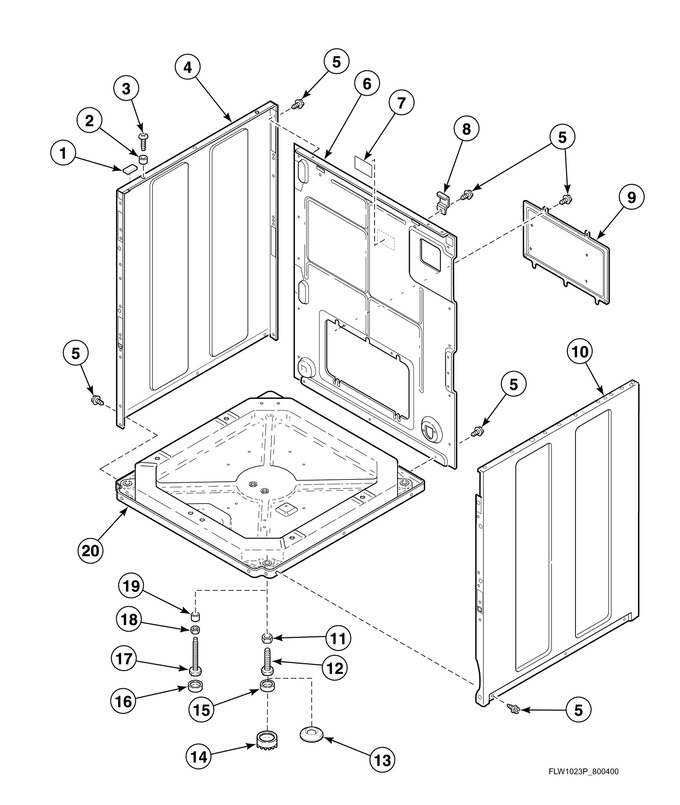

View Diagram in Separate Window
