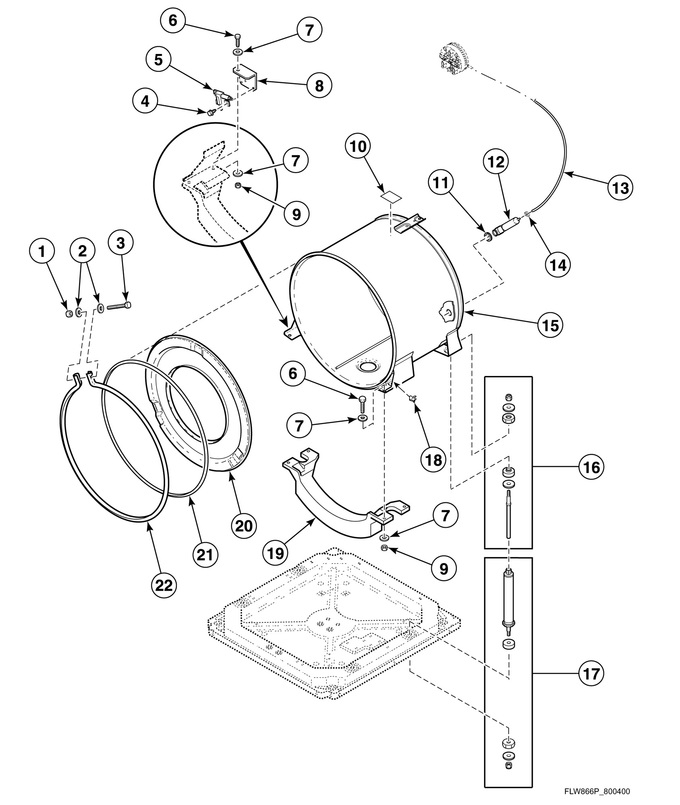

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F430218		Nut				$ 6.95
2	800457		Washer				$ 2.50
3	800462		Screw				$ 10.07
4	D503661		Screw		Appelez-nous	-
5	806512		Out-of-balance Switch Assembly   (Replaces: 801006)			Immediately	$ 156.18
6	800461		Screw				$ 3.56
7	M400081		Washer				$ 4.58
8	800663		Switch Mounting Bracket		Appelez-nous	-
9	800452		Nut			Immediately	$ 0.83
10	D500049		Warning Label		Appelez-nous	-
11	29175		Grommet				$ 8.56
12	COMM PART		Pressure Bulb   (Replaces: 30907)		Appelez-nous	-
13	29214		Tubing		Appelez-nous	-
14	WP596669		Hose Clamp   (Replaces: 39282)			Immediately	$ 7.56
15	801081P		Outer Tub Assembly				$ 2,997.73
16	800622P		Tub Shock Absorber Kit (comment: Upper)			Immediately	$ 48.83
17	800623P		Base Shock Absorber Kit (comment: Lower)			Immediately	$ 115.75
18	00161		Grounding Clip				$ 11.35
19	800205		Ballast Weight		Appelez-nous	-
20	800430		Tub Front Assembly		Appelez-nous	-
21	800432P		Tub Front Seal				$ 63.29
22	800312		Clamp Ring				$ 115.47

    View Diagram in Separate Window       Print Part List
