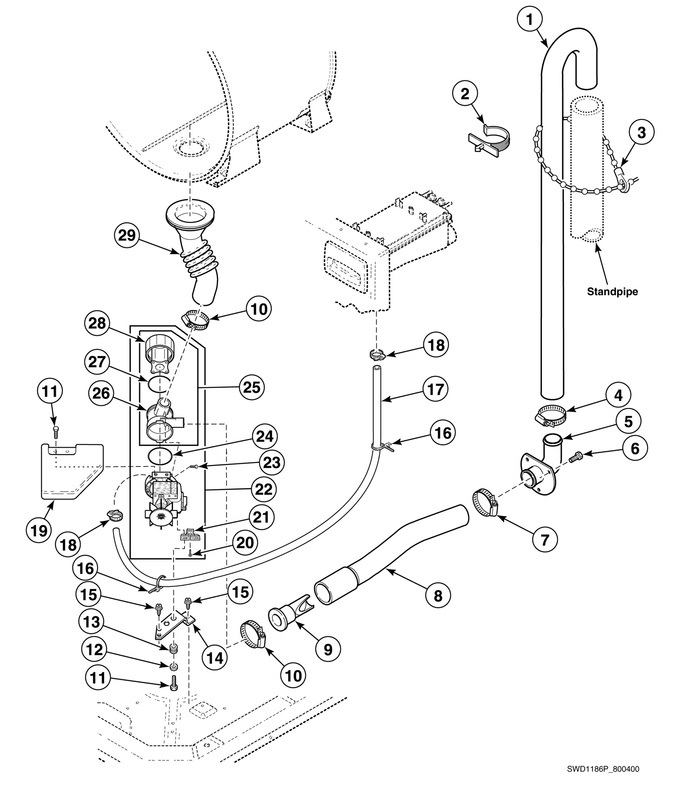

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27154		Drain Hose			Immediately	$ 69.78
2	39177		Hose Retainer Clip		Appelez-nous	-
3	33489		Standpipe Strap		Appelez-nous	-
4	WP285655		Hose Clamp   (Replaces: 20211)			Immediately	$ 7.55
5	35766		Drain Hose Elbow			Immediately	$ 7.87
6	Sub. To D513139P		Screw   (Replaces: 52909)		Appelez-nous	-
7	WP285655		Hose Clamp   (Replaces: 20391)			Immediately	$ 7.55
8	685737		Pump-to-elbow Hose				$ 54.78
9	800310		Backflow Preventer				$ 24.64
10	WP285655		Hose Clamp   (Replaces: 36802)			Immediately	$ 7.55
11	DE81-03735A		Screw (comment: Metric; Use With 685703 Drain Pump)   (Replaces: 38096)				$ 180.77
11	D501285		Screw (comment: Use With 801015 Drain Pump)				$ 2.76
12	800465		Washer		Appelez-nous	-
13	802218		Grommet		Appelez-nous	-
14	802219		Pump Bracket		Appelez-nous	-
15	D503661		Screw		Appelez-nous	-
16	38663		Wire Tie (comment: Push Mount)		Appelez-nous	-
17	800424		Pump-to-dispenser Hose Assembly (comment: Use With 685703 Drain Pump)				$ 26.61
18	F200206		Hose Clamp (comment: Use With 685703 Drain Pump)				$ 1.15
19	38067		Pump Shield (comment: Use With 685703 Drain Pump)		Appelez-nous	-
20	802430		Screw (comment: Use With 801015 Drain Pump)		Appelez-nous	-
21	802432		Pump Mount (comment: Use With 801015 Drain Pump)		Appelez-nous	-
22	888P3		Drain Pump Kit (comment: Includes Wire Harness Adapter)				$ 349.31
23	802431		Screw (comment: Use With 801015 Drain Pump)		Appelez-nous	-
24	802429P		O-ring (comment: Use With 801015 Drain Pump)				$ 84.97
24	802487		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
25	801209		Pump Housing Assembly (comment: Includes Items 26-28; Use With 685703 Drain Pump)		Appelez-nous	-
25	802434P		Pump Housing Assembly (comment: Includes Items 26-28; Use With 801015 Drain Pump)				$ 96.47
26	801208		Pump Housing (comment: Use With 685703 Drain Pump)		Appelez-nous	-
26	802428		Pump Housing (comment: Use With 801015 Drain Pump)		Appelez-nous	-
27	801207		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
27	802427		Gasket (comment: Use With 801015 Drain Pump)				$ 30.78
28	801206P		Lid Assembly (comment: Includes Filter; Use With 685703 Drain Pump)		Appelez-nous	-
28	802426P		Lid Assembly (comment: Includes Filter; Use With 801015 Drain Pump)				$ 138.29
29	800317		Tub-to-pump Hose				$ 54.70
29	COMM PART		Sealant (comment: Tub-to-pump Hose To Outer Tub)   (Replaces: 27615P)		Appelez-nous	-
