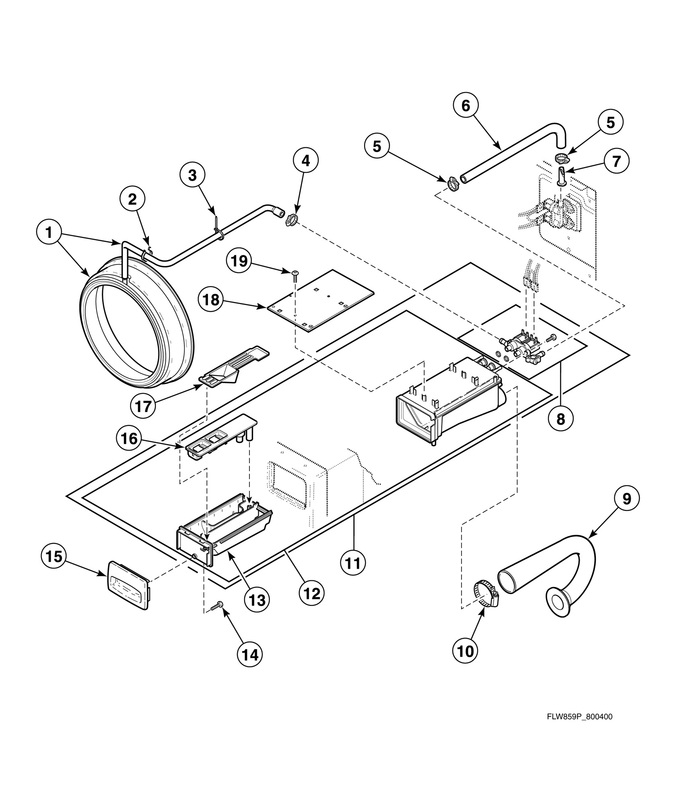

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	801784P		Door Seal And Hose Assembly Kit (comment: Gray)				$ 162.14
1	800232P		Door Seal And Hose Assembly Kit (comment: Black)				$ 273.84
2	687500		Wire Clip		Appelez-nous	-
3	39037		Cable Tie				$ 3.00
4	36801		Hose Clamp			Immediately	$ 9.22
5	800803		Hose Clamp				$ 6.58
6	801464		Valve-to-dispenser Inlet Hose				$ 33.81
7	34500		Backflow Preventer			Immediately	$ 6.95
8	685766P		Valve Kit			Immediately	$ 74.76
9	800331		Dispenser-to-tub Hose			Immediately	$ 70.65
10	802926		Mixing Valve Screen				$ 6.95
11	685756P		Dispenser				$ 89.23
12	801476P		Dispenser Assembly				$ 124.60
13	685757P		Dispenser Drawer			Immediately	$ 46.71
14	800548		Screw			Immediately	$ 3.88
15	685715WP		Dispenser Drawer Front (comment: White)				$ 29.03
15	685715QP		Dispenser Drawer Front (comment: Bisque)		Appelez-nous	-
15	685715L		Dispenser Drawer Front (comment: Almond)				$ 21.35
16	685716		Insert				$ 34.43
17	800899		Detergent Cover				$ 12.08
18	801024		Dispenser Plate		Appelez-nous	-
19	801001		Screw		Appelez-nous	-
