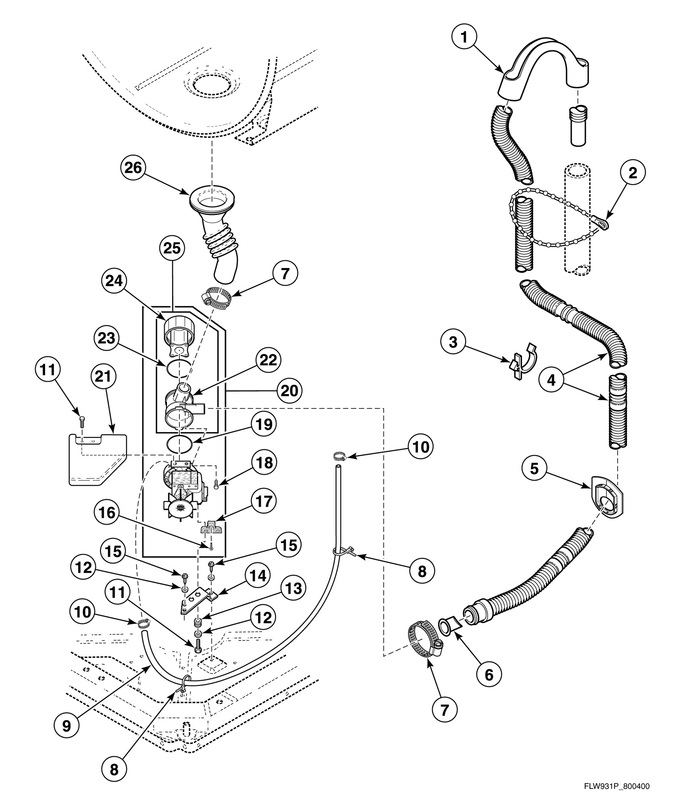

Drain Hose And Pump


Front Panel, Newer Style Door Assembly And Door Seal


Inner Basket, Trunnion, Bearing Housing And Pulley


Labels - Front Control Washers


Labels - Rear Control Washers


Mixing Valve, Fill Hose And Dispenser Hose


Motor And Belt


Outer Tub, Front And Clamp Ring


Shipping Materials


Special Tools


Top, Control Panel And Controls


Wire Harnesses And Wires


Wire Ties, Harness Clips And Lead-in Cord


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33615		Drain Hose Sleeve				$ 8.35
2	33489		Standpipe Strap		Appelez-nous	-
3	36014		Retainer Clip				$ 6.95
4	685730		Drain Hose			Immediately	$ 57.78
5	32219		Strain Relief				$ 6.95
6	800310		Backflow Preventer				$ 24.64
7	WP285655		Hose Clamp   (Replaces: 36802)			Immediately	$ 7.55
8	38663		Wire Tie		Appelez-nous	-
9	800424		Pump-to-dispenser Hose Assembly (comment: Use With 685703 Drain Pump)				$ 26.61
10	F200206		Hose Clamp (comment: Use With 685703 Drain Pump)				$ 1.15
11	DE81-03735A		Screw (comment: Metric; Use With 685703 Drain Pump)   (Replaces: 38096)				$ 180.77
11	D501285		Screw (comment: Use With 801015 Drain Pump)				$ 2.76
12	800465		Washer		Appelez-nous	-
13	802218		Grommet		Appelez-nous	-
14	802219		Pump Bracket		Appelez-nous	-
15	D503661		Screw		Appelez-nous	-
16	802430		Screw (comment: Use With 801015 Drain Pump)		Appelez-nous	-
17	802432		Pump Mount (comment: Use With 801015 Drain Pump)		Appelez-nous	-
18	802431		Screw (comment: Use With 801015 Drain Pump)		Appelez-nous	-
19	802429P		O-ring (comment: Use With 801015 Drain Pump)				$ 84.97
19	802487		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
20	888P3		Drain Pump Kit				$ 349.31
21	38067		Pump Shield (comment: Use With 685703 Drain Pump)		Appelez-nous	-
22	801208		Pump Housing (comment: Use With 685703 Drain Pump)		Appelez-nous	-
22	802428		Pump Housing (comment: Use With 801015 Drain Pump)		Appelez-nous	-
23	801207		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
23	802427		Gasket (comment: Use With 801015 Drain Pump)				$ 30.78
24	802426P		Lid Assembly (comment: Includes Filter; Use With 801015 Drain Pump)				$ 138.29
24	801206P		Lid Assembly (comment: Includes Filter; Use With 685703 Drain Pump)		Appelez-nous	-
25	801209		Pump Housing Assembly (comment: Includes Items 22-24; Use With 685703 Drain Pump)		Appelez-nous	-
25	802434P		Pump Housing Assembly (comment: Includes Items 22-24; Use With 801015 Drain Pump)				$ 96.47
26	800317		Tub-to-pump Hose				$ 54.70
26	COMM PART		Sealant (comment: Tub-to-pump Hose To Outer Tub)   (Replaces: 27615P)		Appelez-nous	-
