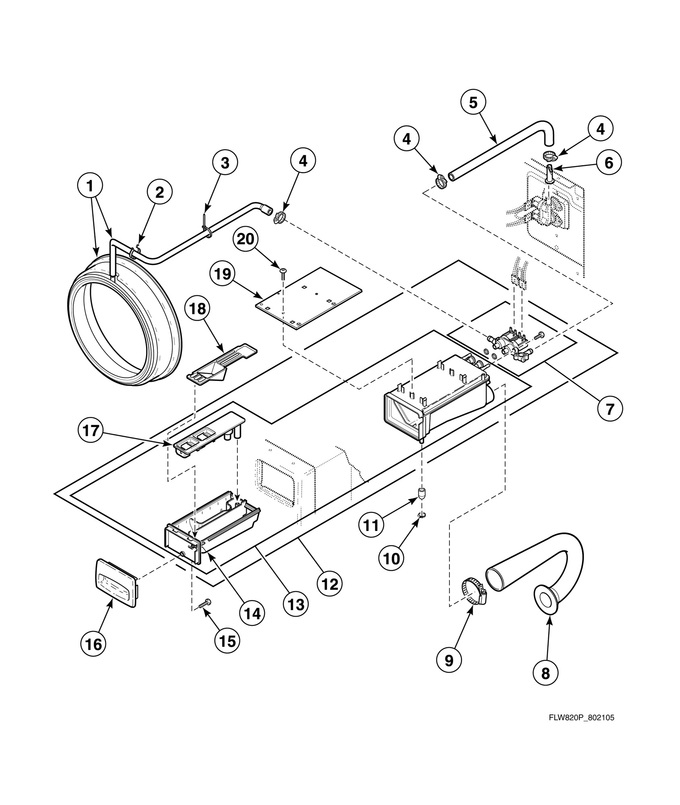

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	801784P		Door Seal And Hose Assembly Kit (comment: Gray)				$ 162.14
1	800232P		Door Seal And Hose Assembly Kit (comment: Black)				$ 273.84
2	687500		Wire Clip		Appelez-nous	-
3	COMM PART		Harness Strap   (Replaces: 55881)		Appelez-nous	-
4	800803		Hose Clamp				$ 6.58
5	801464		Valve-to-dispenser Inlet Hose				$ 33.81
6	34500		Backflow Preventer			Immediately	$ 6.95
7	685766P		Valve Kit			Immediately	$ 74.76
8	800331		Dispenser-to-tub Hose			Immediately	$ 70.65
9	685725		Hose Clamp				$ 4.21
10	F200206		Hose Clamp				$ 1.15
11	801746		Cap				$ 0.93
12	685756P		Dispenser (comment: Includes Items 7, 13, 14 And 17)				$ 89.23
13	801476P		Dispenser Assembly (comment: Includes Items 14 And 17)				$ 124.60
14	685757P		Dispenser Drawer			Immediately	$ 46.71
15	800548		Screw			Immediately	$ 3.88
16	685715WP		Dispenser Drawer Front				$ 29.03
17	685716		Insert				$ 34.43
18	800899		Detergent Cover				$ 12.08
19	801024		Dispenser Plate		Appelez-nous	-
20	801001		Screw		Appelez-nous	-
