Base, Side Panels And Rear Panel


Cabinet Top, Control Panel And Controls


Dispenser Assembly


Drain Hose And Pump


Front Panel, Door Assembly And Door Seal


Inner Basket, Trunnion, Bearing Housing And Pulley


Labels


Mixing Valve, Fill Hose And Valve-to-dispenser Hose


Motor And Belt


Outer Tub, Front And Clamp Ring


Shipping Materials


Special Tools


Wire Harnesses And Wires


Wire Ties, Harness Clips And Lead-in Cord

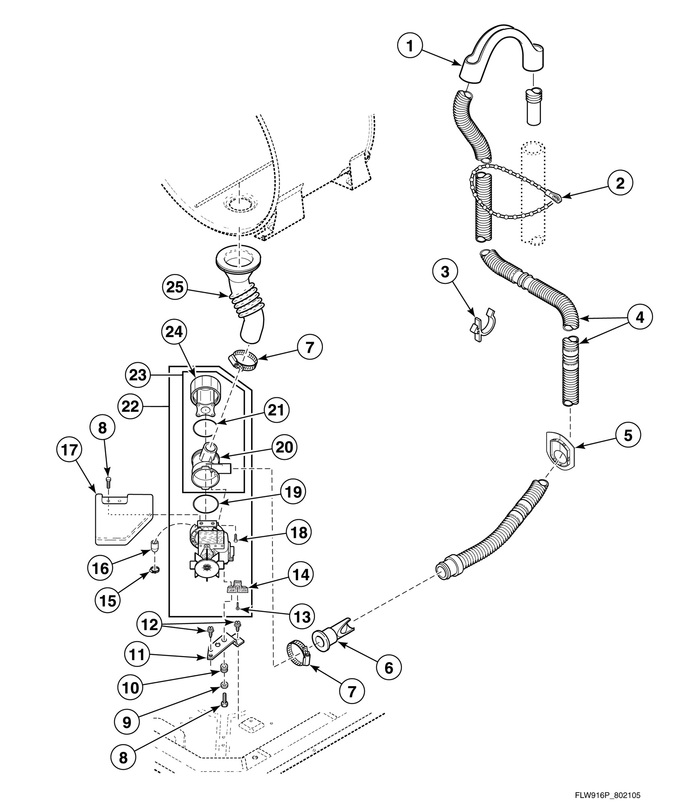

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33615		Drain Hose Sleeve				$ 8.35
2	33489		Standpipe Strap		Appelez-nous	-
3	36014		Retainer Clip				$ 6.95
4	685730		Drain Hose			Immediately	$ 57.78
5	32219		Strain Relief				$ 6.95
6	800310		Backflow Preventer				$ 24.64
7	WP285655		Hose Clamp   (Replaces: 36802)			Immediately	$ 7.55
8	D501285		Screw (comment: Use With 801015 Drain Pump)				$ 2.76
8	DE81-03735A		Screw (comment: Metric; Use With 685703 Drain Pump)   (Replaces: 38096)				$ 180.77
9	800465		Washer (comment: Use With 685703 And 801015 Drain Pump)		Appelez-nous	-
10	802218		Grommet (comment: Use With 685703 And 801015 Drain Pump)		Appelez-nous	-
11	802219		Pump Bracket (comment: Use With 685703 And 801015 Drain Pump)		Appelez-nous	-
11	802626		Pump Mount Bracket (comment: Use With 802623 Drain Pump)		Appelez-nous	-
12	D503661		Screw		Appelez-nous	-
13	802430		Screw (comment: Use With 801015 And 802623 Drain Pump)		Appelez-nous	-
14	802432		Pump Mount (comment: Use With 801015 Drain Pump)		Appelez-nous	-
15	F200206		Hose Clamp (comment: Use With 685703 Drain Pump)				$ 1.15
16	801112		Nozzle Cap (comment: Use With 685703 Drain Pump)		Appelez-nous	-
17	38067		Pump Shield (comment: Use With 685703 Drain Pump)		Appelez-nous	-
18	802431		Screw (comment: Use With 801015 And 802623 Drain Pump)		Appelez-nous	-
19	802429P		O-ring (comment: Use With 801015 And 802623 Drain Pump)				$ 84.97
19	37392		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
20	802428		Pump Housing (comment: Use With 801015 And 802623 Drain Pump)		Appelez-nous	-
20	801208		Pump Housing (comment: Use With 685703 Drain Pump)		Appelez-nous	-
21	801207		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
21	802427		Gasket (comment: Use With 801015 And 802623 Drain Pump)				$ 30.78
22	802623P		Drain Pump (comment: Includes Pump Mount Bracket)			Immediately	$ 235.50
23	802434P		Pump Housing Assembly (comment: Includes Items 20, 21 And 24; Use With 801015 And 802623 Drain Pump)				$ 96.47
23	801209		Pump Housing Assembly (comment: Includes Items 20, 21 And 24; Use With 685703 Drain Pump)		Appelez-nous	-
24	801206P		Lid Assembly (comment: Includes Filter; Use With 685703 Drain Pump)		Appelez-nous	-
24	802426P		Lid Assembly (comment: Includes Filter; Use With 801015 And 802623 Drain Pump)				$ 138.29
25	800317		Tub-to-pump Hose				$ 54.70
25	COMM PART		Sealant (comment: Tub-to-pump Hose To Outer Tub)   (Replaces: 27615P)		Appelez-nous	-
