| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
802247WP |
|
Top And Gusset Assembly (comment: White) |
|
|
|
$ 461.42 |
|
|
| 1 |
802247QP |
|
Top And Gusset Assembly (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
685847 |
|
Pop Rivet |
|
Appelez-nous
|
- |
|
|
|
| 3 |
D511036 |
 |
Hinge |
|
|
Immediately |
$ 4.23 |
|
|
| 4 |
29651 |
|
Bolt |
|
|
|
$ 6.95 |
|
|
| 5 |
D504228 |
|
Top Mounting Bracket |
|
Appelez-nous
|
- |
|
|
|
| 6 |
802299P |
 |
Pressure Switch |
|
|
Immediately |
$ 74.01 |
|
|
| 7 |
M402542 |
|
Snap Bushing |
|
Appelez-nous
|
- |
|
|
|
| 8 |
802523P |
 |
Control Assembly |
|
|
Immediately |
$ 866.11 |
|
|
| 9 |
D501524 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 10 |
801058 |
|
Rear Control Cabinet |
|
Appelez-nous
|
- |
|
|
|
| 11 |
70240301 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 12 |
44087201 |
|
Nut |
|
Appelez-nous
|
- |
|
|
|
| 13 |
70030501 |
|
Expansion Clip |
|
Appelez-nous
|
- |
|
|
|
| 14 |
801788 |
|
Union |
|
|
|
$ 7.47 |
|
|
| 15 |
801789 |
|
Connector |
|
Appelez-nous
|
- |
|
|
|
| 16 |
801787Q |
|
Right Control Cabinet (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
801787W |
|
Right Control Cabinet (comment: White) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
800900WP |
|
Left Control Cabinet Side (comment: White) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
800900QP |
|
Left Control Cabinet Side (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
801777 |
|
Control Cabinet Bottom |
|
Appelez-nous
|
- |
|
|
|
| 19 |
D503688 |
 |
Screw |
|
|
Immediately |
$ 6.95 |
|
|
| 20 |
- |
|
Not On Your Model |
|
Appelez-nous
|
- |
|
|
|
| 21 |
36985 |
|
Hose Clip |
|
Appelez-nous
|
- |
|
|
|
| 22 |
801371 |
|
Control Shield |
|
Appelez-nous
|
- |
|
|
|
| 23 |
D503661 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 24 |
210018P |
|
Transformer |
|
|
Immediately |
$ 127.68 |
|
|
| 25 |
- |
|
Not On Your Model |
|
Appelez-nous
|
- |
|
|
|

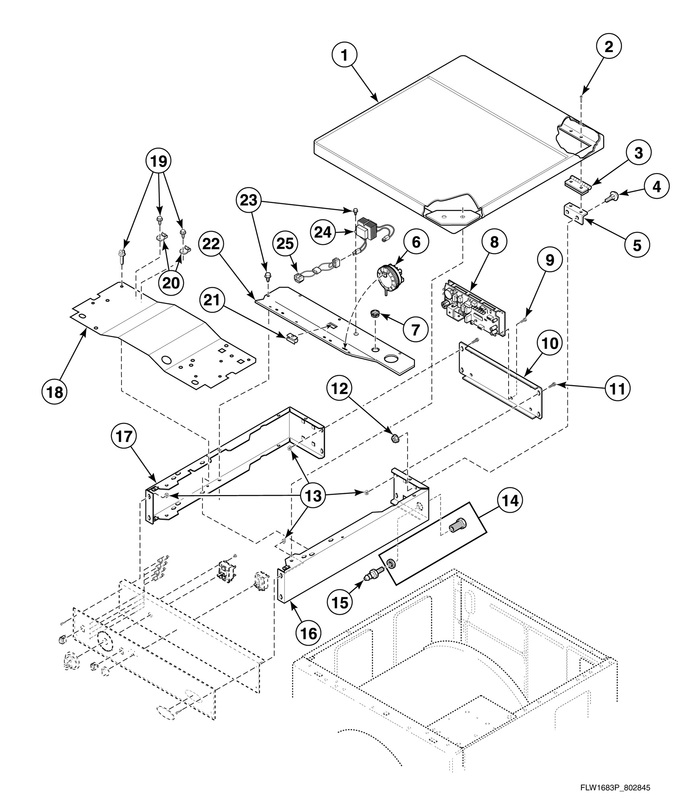

View Diagram in Separate Window
Print Part List
