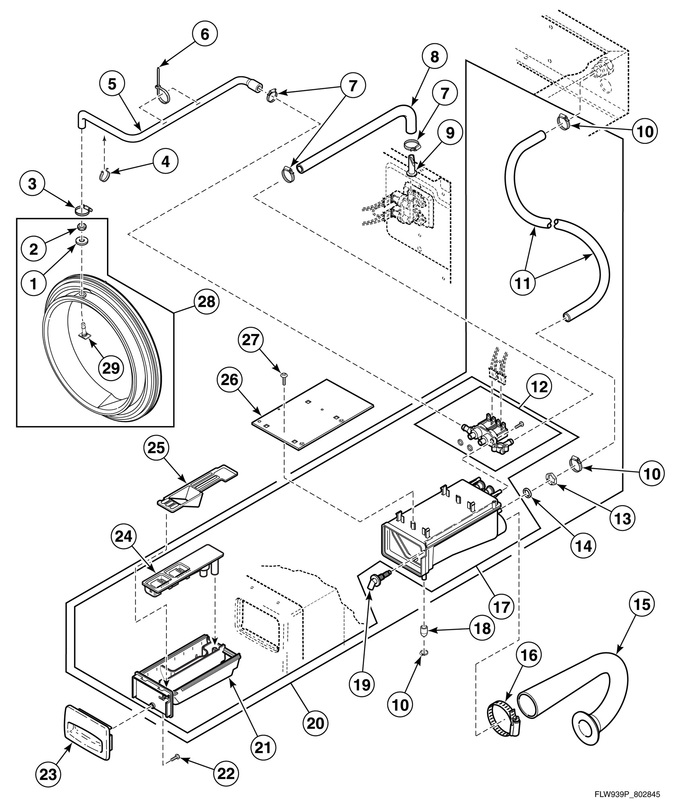

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	802293		Washer		Appelez-nous	-
2	802292		Nut		Appelez-nous	-
3	802698		Hose Clamp				$ 11.84
4	687500		Wire Clip		Appelez-nous	-
5	802256		Dispenser-to-door Seal Hose				$ 32.35
6	COMM PART		Harness Strap   (Replaces: 55881)		Appelez-nous	-
7	802164		Hose Clamp				$ 5.35
8	801464		Valve-to-dispenser Inlet Hose				$ 33.81
9	34500		Backflow Preventer			Immediately	$ 6.95
10	F200206		Hose Clamp				$ 1.15
11	801635		Tubing		Appelez-nous	-
12	685766P		Valve Kit			Immediately	$ 74.76
13	802292		Nut		Appelez-nous	-
14	F170208		O-ring		Appelez-nous	-
15	800331		Dispenser-to-tub Hose			Immediately	$ 70.65
16	685725		Hose Clamp				$ 4.21
17	801630P		Dispenser Assembly (comment: Includes Items 12, 21 And 24)		Appelez-nous	-
18	801746		Cap				$ 0.93
19	F8322001		Injection Nozzle				$ 8.23
20	801662P		Dispenser Assembly (comment: Includes Items 10-14, 17, 19 And 24)				$ 578.89
21	685757P		Dispenser Drawer			Immediately	$ 46.71
22	800548		Screw			Immediately	$ 3.88
23	685715WP		Dispenser Drawer Front (comment: White)				$ 29.03
23	685715QP		Dispenser Drawer Front (comment: Bisque)		Appelez-nous	-
24	685716		Insert				$ 34.43
25	800899		Detergent Cover				$ 12.08
26	801024		Dispenser Plate		Appelez-nous	-
27	801001		Screw		Appelez-nous	-
28	802866P		Door Seal Assembly (comment: Black; Units Are Produced With Black; Includes Items 1, 2 And 29)			Immediately	$ 393.66
28	802830P		Door Seal Kit (comment: Gray; Optional; Includes Items 1, 2 And 29)			Immediately	$ 327.61
29	802291		Boot Nozzle				$ 8.70
