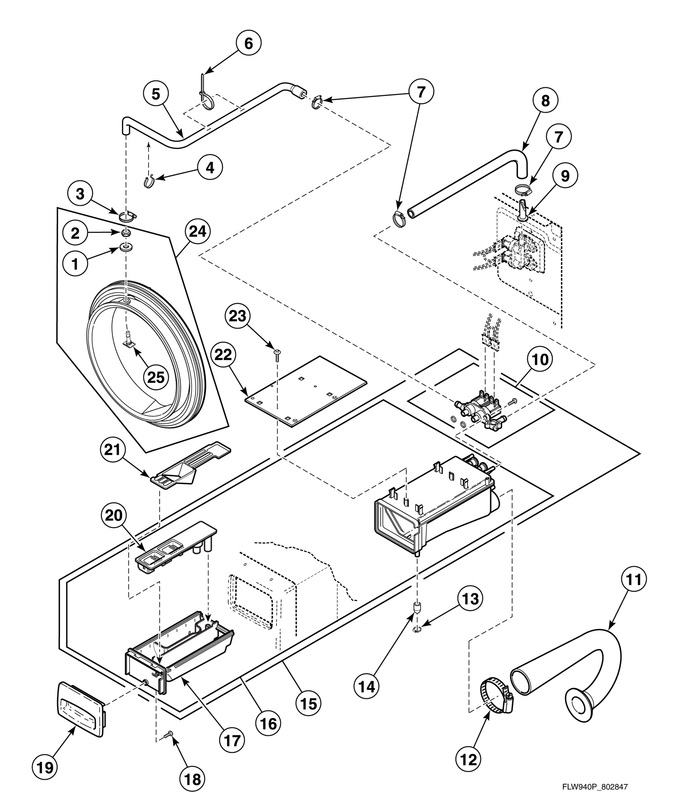

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	802293		Washer		Appelez-nous	-
2	802292		Nut		Appelez-nous	-
3	802698		Hose Clamp				$ 11.84
4	687500		Wire Clip		Appelez-nous	-
5	802256		Dispenser-to-door Seal Hose				$ 32.35
6	COMM PART		Harness Strap   (Replaces: 55881)		Appelez-nous	-
7	802164		Hose Clamp				$ 5.35
8	801464		Valve-to-dispenser Inlet Hose				$ 33.81
9	34500		Backflow Preventer			Immediately	$ 6.95
10	801836P		Valve Kit				$ 77.07
11	800331		Dispenser-to-tub Hose			Immediately	$ 70.65
12	685725		Hose Clamp				$ 4.21
13	F200206		Hose Clamp				$ 1.15
14	801746		Cap				$ 0.93
15	801090P		Dispenser (comment: Includes Items 10, 16 And 20)				$ 151.61
16	801476P		Dispenser Assembly (comment: Includes Items 17 And 20)				$ 124.60
17	685757P		Dispenser Drawer			Immediately	$ 46.71
18	800548		Screw			Immediately	$ 3.88
19	685715WP		Dispenser Drawer Front (comment: White)				$ 29.03
19	685715QP		Dispenser Drawer Front (comment: Bisque)		Appelez-nous	-
20	685716		Insert				$ 34.43
21	800899		Detergent Cover				$ 12.08
22	801024		Dispenser Plate		Appelez-nous	-
23	801001		Screw		Appelez-nous	-
24	802866P		Door Seal Assembly (comment: Black; Includes Items 1, 2 And 25)			Immediately	$ 393.66
24	802830P		Door Seal Kit (comment: Gray; Includes Items 1, 2 And 25)			Immediately	$ 327.61
25	802291		Boot Nozzle				$ 8.70
