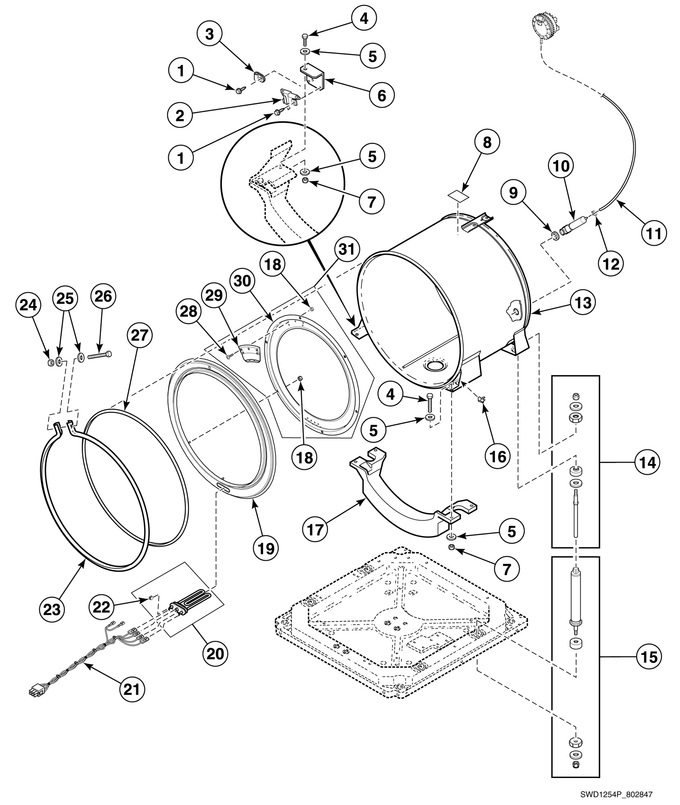

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D503661		Screw		Appelez-nous	-
2	803415		Out-of-balance Switch Assembly (comment: Models Starting Serial No. 1201004552)			Immediately	$ 13.86
2	806512		Out-of-balance Switch Assembly Kit (comment: Models Through Serial No. 1201004551)			Immediately	$ 156.18
3	800811		Wire Clamp		Appelez-nous	-
4	800461		Screw				$ 3.56
5	M400081		Washer				$ 4.58
6	803388		Switch Mounting Bracket (comment: Models Starting Serial No. 1201004552)				$ 11.39
6	800663		Switch Mounting Bracket (comment: Models Through Serial No. 1201004551)		Appelez-nous	-
7	800452		Nut			Immediately	$ 0.83
8	D500049		Warning Label		Appelez-nous	-
9	29175		Grommet				$ 8.56
10	COMM PART		Pressure Bulb   (Replaces: 30907)		Appelez-nous	-
11	800648P		Tubing				$ 20.50
12	WP596669		Hose Clamp   (Replaces: 39282)			Immediately	$ 7.56
13	801081P		Outer Tub Assembly				$ 2,997.73
14	800622P		Tub Shock Absorber Kit (comment: Upper)			Immediately	$ 48.83
15	807875		Base Shock Absorber Kit (comment: Lower; Must Replace All Four)   (Replaces: 802881P)			Immediately	$ 91.68
16	00161		Grounding Clip				$ 11.35
17	800205		Ballast Weight		Appelez-nous	-
18	802343		Nut		Appelez-nous	-
19	802258		Tub Front Assembly				$ 320.12
20	-		Not On Your Model		Appelez-nous	-
21	-		Not On Your Model		Appelez-nous	-
22	-		Not On Your Model		Appelez-nous	-
23	800312		Clamp Ring				$ 115.47
24	F430218		Nut				$ 6.95
25	800457		Washer				$ 2.50
26	800462		Screw				$ 10.07
27	800432P		Tub Front Seal				$ 63.29
28	802596		Screw				$ 6.95
29	804174P		Clothes Guard Deflector				$ 23.87
29	804482		Clothes Guard Deflector (comment: Heavy Duty)				$ 16.52
30	803537		Clothes Guard				$ 61.44
31	804560P		Clothes Guard And Deflector Kit (comment: Includes Items 7, 18 And 25-30)				$ 130.06
