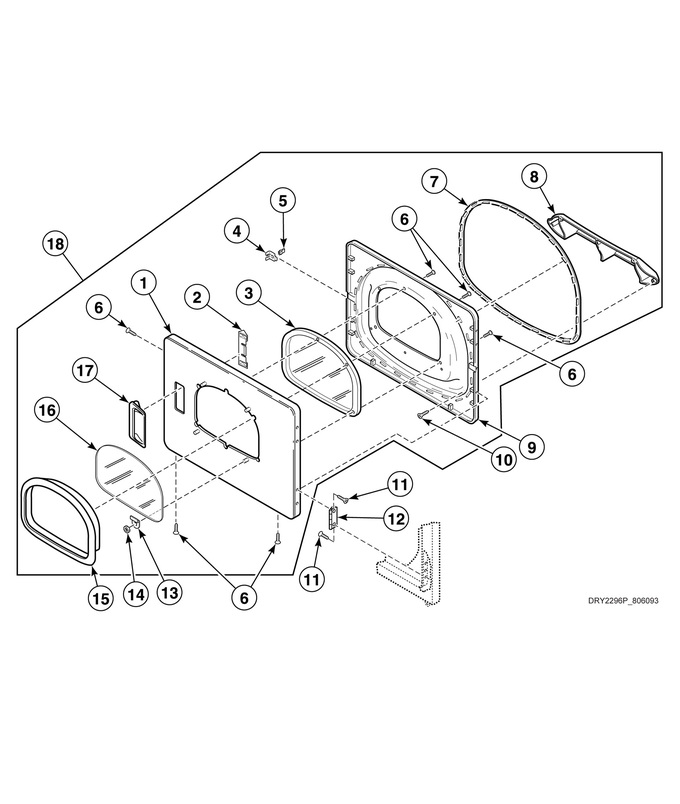

Dryer Loading Door (drawing 1 Of 2)


Dryer Terminals And Terminal Extractor Tools


Front Bulkhead, Air Duct, Felt Seal And Cylinder


Front Panel, Door Assembly And Door Seal


Gas Valve, Igniter And Gas Conversion Kits (gas Models)


Heater Duct Assembly (gas Models)


Inner Basket, Trunnion, Bearing Housing And Pulley


Mixing Valve, Fill Hose And Valve-to-dispenser Hose


Motor And Belt


Motor, Exhaust Fan And Belt


Outer Tub, Front And Clamp Ring


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Shipping Materials


Special Tools


Washer Labels


Washer Lead-in Cord, Wire Ties And Harness Clips


Wire Harnesses And Wires


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510082WP		Dryer Door (comment: Through Serial No. 1606000838)				$ 111.64
1	D515961W		Dryer Door (comment: Starting Serial Nos. Beginning 1707)				$ 79.14
2	D510129W		Door Handle Wedge				$ 2.80
3	D503982P		Dryer Door Window (comment: Through Serial Nos. Beginning 1707)				$ 122.78
3	D515681		Dryer Door Window (comment: Glass; Starting Serial Nos. Beginning 1707)				$ 73.93
4	D510127		Door Strike Mount (comment: Through Serial Nos. Beginning 1707)				$ 3.22
5	D510181		Door Strike			Immediately	$ 4.00
6	D500226		Screw (comment: Through Serial No. 1606000838)				$ 3.88
6	D515967		Screw (comment: Starting Serial Nos. Beginning 1707)		Appelez-nous	-
7	D510147P		Liner Door Seal (comment: Through Serial Nos. Beginning 1707)				$ 25.09
8	D503870W		Door Liner Grill (comment: Through Serial No. 1606000838 And Starting Again With Serial Nos. Beginning 1707)			Immediately	$ 33.92
9	D516509		Liner And Seal Assembly (comment: Includes Seal; Starting Serial Nos. Beginning 1707)		Appelez-nous	-
9	D510098W		Liner And Seal Assembly (comment: Includes Item 7; Through Serial No. 1606000838)				$ 116.10
10	D505870		Screw				$ 6.95
11	D505295		Screw				$ 1.47
12	D511036		Hinge			Immediately	$ 4.23
13	-		Not On Your Model		Appelez-nous	-
14	-		Not On Your Model		Appelez-nous	-
15	D515956W		Window Trim (comment: Starting Serial Nos. Beginning 1707)				$ 74.68
15	D503981W		Window Trim (comment: Through Serial No. 1606000838)				$ 93.99
16	-		Not On Your Model		Appelez-nous	-
17	D510103WP		Door Pull And Wedge Kit			Immediately	$ 8.43
18	D511636WP		Door And Liner Assembly (comment: White; Includes Items 1-10, 15 And 17; Through Serial No. 1606000838)		Appelez-nous	-
