| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
D515533P |
|
Front Bulkhead (comment: Galvanized) (Replaces: D513641) |
|
|
Immediately |
$ 247.07 |
|
|
| 1 |
D513640W |
|
Front Bulkhead (comment: White) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
D513738 |
 |
Moisture Sensor Base |
|
|
|
$ 3.22 |
|
|
| 3 |
D513737 |
 |
Bar Sensor (comment: 2 Required) |
|
|
Immediately |
$ 2.95 |
|
|
| 4 |
D510207P |
 |
Cylinder Seal Assembly |
|
|
Immediately |
$ 55.95 |
|
|
| 4 |
RB170001 |
 |
Seal Kit (comment: Includes 2 Cylinder Seals, D510238p Blower Housing Seal And Adhesive) |
|
|
Immediately |
$ 128.85 |
|
|
| 4 |
D511637P |
 |
Adhesive (comment: Apply To Cylinder Seal) |
|
|
|
$ 60.60 |
|
|
| 5 |
D510102W |
|
Cylinder Baffle (comment: 3 Required) |
|
|
Immediately |
$ 7.00 |
|
|
| 6 |
D510159WP |
 |
Cylinder Assembly (comment: White; If Black Marks Appear On Clothes, Replace Cylinder With This Part, Front Bulkhead With Front Bulkhead And Rear Bulkhead With D510905wp Rear Bulkhead Assembly) |
|
|
|
$ 516.92 |
|
|
| 6 |
D510265WP |
 |
Cylinder Assembly (comment: Includes Item 5) |
|
|
Immediately |
$ 421.96 |
|
|
| 7 |
62588 |
|
Screw |
|
|
|
$ 6.95 |
|
|
| 8 |
D512082P |
|
Drying Rack |
|
|
|
$ 104.12 |
|
|
| 9 |
D503688 |
 |
Screw |
|
|
Immediately |
$ 6.95 |
|
|
| 10 |
D501285 |
|
Screw |
|
|
|
$ 2.76 |
|
|
| 11 |
D518433 |
|
Air Duct Assembly (Replaces: D515805LG) |
|
|
Immediately |
$ 97.32 |
|
|
| 11 |
D518432 |
|
Air Duct Assembly (comment: Through Serial No. 1606000838) (Replaces: D510151W) |
|
|
|
$ 63.82 |
|
|
| 12 |
D503980W |
 |
Lint Filter (comment: Through Serial No. 1606000838) |
|
|
Immediately |
$ 43.14 |
|
|
| 12 |
D503980LG |
 |
Lint Filter (comment: Light Gray; Starting Serial No. 1606000839) |
|
|
Immediately |
$ 64.03 |
|
|
| 13 |
D510502LG |
 |
Lint Filter Cover (comment: Starting Serial No. 1606000839) |
|
|
Immediately |
$ 8.43 |
|
|
| 13 |
D510502W |
 |
Lint Filter Cover (comment: Through Serial No. 1606000838) |
|
|
Immediately |
$ 10.81 |
|
|
| 14 |
D510189 |
 |
Felt Pad (comment: 2 Required) |
|
|
|
$ 4.23 |
|
|
| 15 |
D513710 |
 |
Cylinder Glide (comment: 2 Required) |
|
|
Immediately |
$ 10.81 |
|
|
| 16 |
RB170003 |
 |
Glide Kit (comment: Includes Items 14 And 15) |
|
|
Immediately |
$ 36.72 |
|
|
| 17 |
D512106 |
|
Cylinder Light Lens |
|
|
|
$ 9.97 |
|
|
| 18 |
60954 |
 |
Drum Light Lamp |
|
|
|
$ 24.20 |
|
|
| 19 |
D512108 |
 |
Light Housing Assembly (comment: 120 Volt; Includes Item 18) |
|
|
|
$ 31.43 |
|
|
| 20 |
D500227 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 21 |
D501086 |
|
Screw |
|
|
Immediately |
$ 6.95 |
|
|
| 22 |
D510145 |
 |
Cylinder Glide Bracket (comment: 2 Required) |
|
|
|
$ 14.05 |
|
|
| 23 |
D515544WP |
 |
Bulkhead Assembly (comment: White; Includes Items 1-4, 9, 14, 15, 17, 19, 20 And 22) (Replaces: D515544W) |
|
|
|
$ 253.76 |
|
|
| 23 |
D515533P |
|
Front Bulkhead Assembly (comment: Galvanized; Includes Items 1-4, 14-20 And 22) (Replaces: D515533) |
|
|
Immediately |
$ 247.07 |
|
|

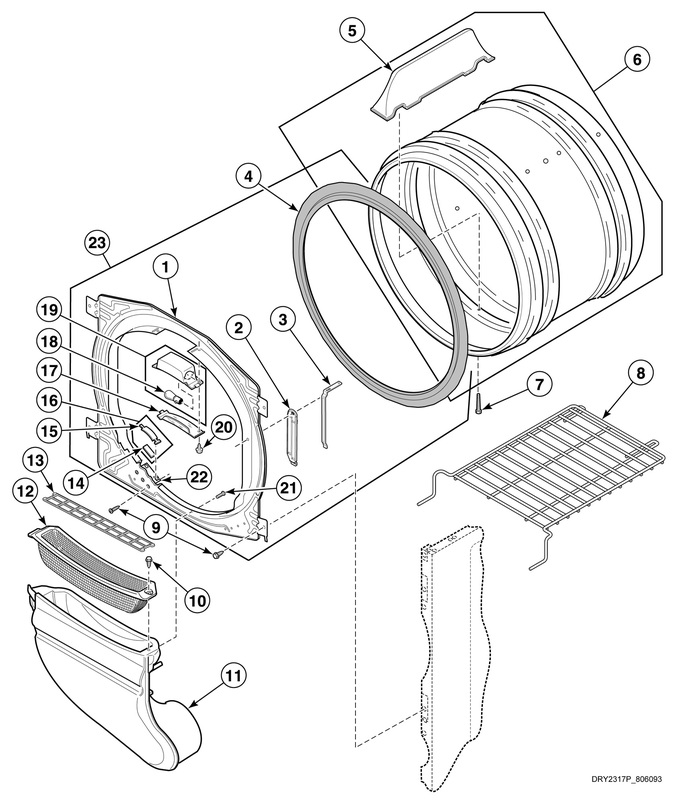

View Diagram in Separate Window
