SELECT A DIAGRAM

Component Group 1


Access Panel, Front Panel And Seal


Cabinet, Exhaust Duct And Base


Cabinet Top And Control Hood Rear Panel


Front Bulkhead, Air Duct, Felt Seal And Cylinder

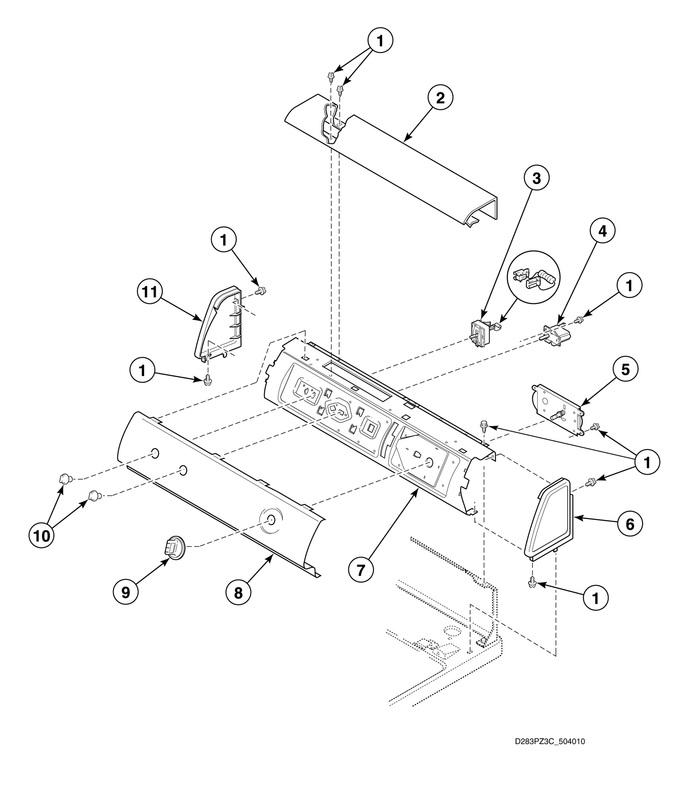

Graphic Panel, Control Hood And Controls - Models les34a* and lgs34a*


Heater Duct And Element Assembly


Lead-in Cord - Electric Models


Loading Door


Motor Connection Block And Terminal Extractor Tools


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D501086		Screw			Immediately	$ 6.95
2	D505808W		Top Cover (comment: White)				$ 91.43
2	D505808L		Top Cover (comment: Almond)		Appelez-nous	-
3	D513505		Fabric Selector Switch			Immediately	$ 45.66
4	D510211		Buzzer				$ 41.95
5	N/A		Timer		Appelez-nous	-
6	D504008W		End Panel (comment: White, Right)		Appelez-nous	-
6	D504008L		End Panel (comment: Almond; Right)		Appelez-nous	-
7	D503901		Control Support Panel		Appelez-nous	-
8	D504569W		Graphic Panel		Appelez-nous	-
9	D510287L		Timer Knob Assembly (comment: Almond)		Appelez-nous	-
9	D512117W		Timer Knob Assembly (comment: White)			Immediately	$ 8.06
10	WP36701W		Knob Assembly   (Replaces: 33688)			Immediately	$ 44.31
11	D504009L		End Panel (comment: Almond; Left)		Appelez-nous	-
11	D504009W		End Panel (comment: White; Left)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
