SELECT A DIAGRAM

Component Group 1


Access Panel, Front Panel And Seal


Cabinet, Exhaust Duct And Base


Cabinet Top And Control Hood Rear Panel


Front Bulkhead, Air Duct, Felt Seal And Cylinder


Graphic Panel, Control Hood And Controls - Models les34a* and lgs34a*


Heater Duct And Element Assembly


Lead-in Cord - Electric Models

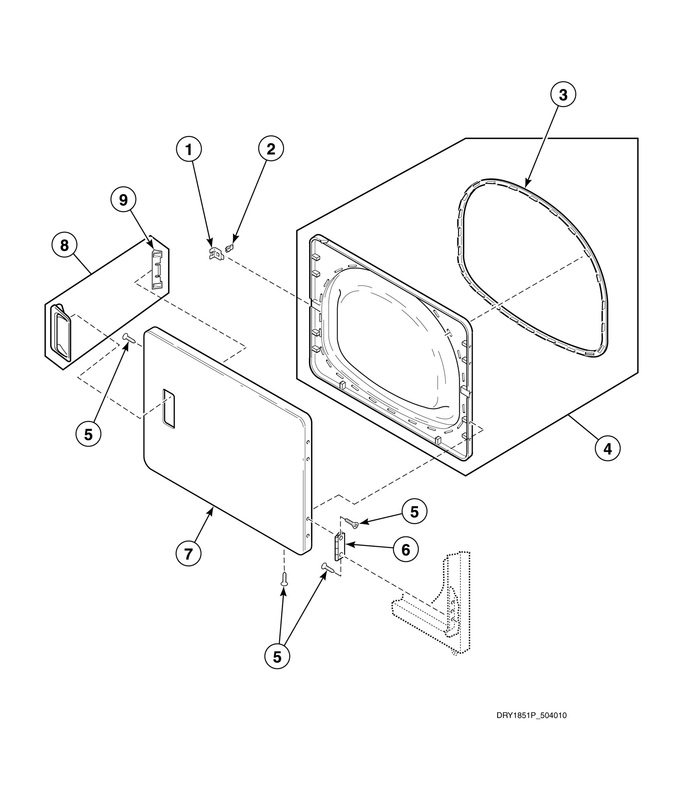

Loading Door


Motor Connection Block And Terminal Extractor Tools


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510127		Door Strike Mount				$ 3.22
2	D510181		Door Strike			Immediately	$ 4.00
3	D510147P		Liner Door Seal				$ 25.09
4	D510289W		Liner And Seal Assembly (comment: Includes Item 3)		Appelez-nous	-
5	D500226		Screw   (Replaces: D514461)				$ 3.88
6	D511036		Door Hinge			Immediately	$ 4.23
7	D510013W		Dryer Door (comment: White)		Appelez-nous	-
7	D510013L		Dryer Door (comment: Almond)		Appelez-nous	-
8	D510103WP		Door Pull And Wedge Kit (comment: White; Includes Item 9)			Immediately	$ 8.43
8	D510103LP		Door Pull And Wedge Kit (comment: Almond; Includes Item 9)		Appelez-nous	-
9	D510129		Door Handle Wedge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
