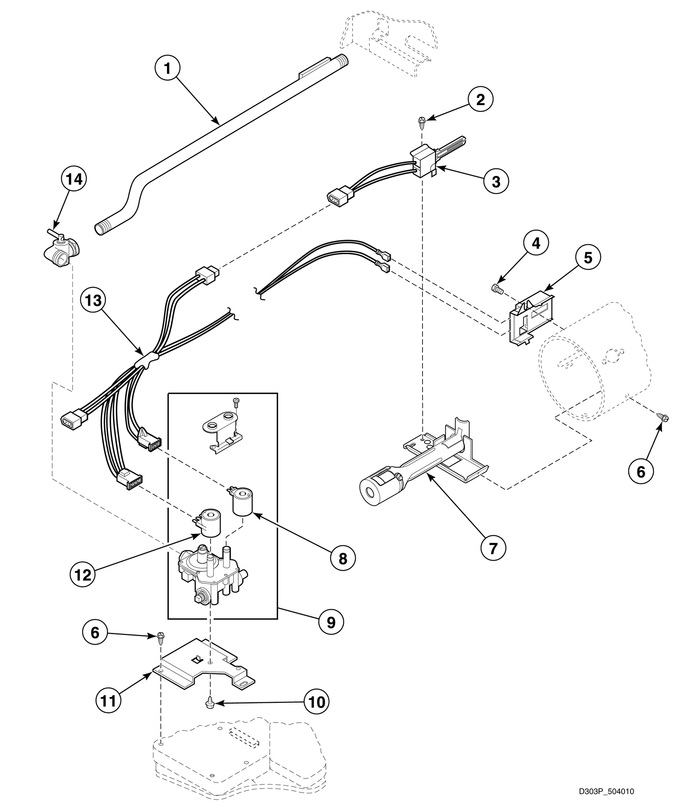

Gas Valve, Igniter And Gas Conversion Kits


Graphic Panel, Control Hood And Controls - Models les34a* and lgs34a*


Heater Duct Assembly


Lead-in Cord - Gas Models


Loading Door


Motor Connection Block And Terminal Extractor Tools


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510204		Lead-in Pipe Assembly				$ 120.22
2	Sub. To D510151W		Screw   (Replaces: 51782)		Appelez-nous	-
3	D510184P		Igniter And Bracket Assembly			Immediately	$ 67.69
4	WP3177991		Screw   (Replaces: 23222)			Immediately	$ 6.47
5	D510213		Sensor				$ 76.88
6	D503688		Screw			Immediately	$ 6.95
7	D510149		Burner Assembly		Appelez-nous	-
8	279834		Secondary Coil   (Replaces: 58804B)			Immediately	$ 29.57
9	D510506P		Gas Valve Assembly (comment: Includes Items 8 And 12)				$ 542.80
10	WP489128		Screw   (Replaces: 56124)				$ 9.79
11	D510128		Gas Valve Mounting Bracket		Appelez-nous	-
12	58804A		Booster And Holding Coil			Immediately	$ 28.02
13	D510530		Gas Valve Wire Harness Assembly				$ 109.26
14	D510205		Elbow Shut-off Valve				$ 109.80
NA	650P3		N.g. Conversion Kit (comment: Used To Convert Dryers From L.p To N.g. Or Mixed Gas)				$ 84.60
NA	649P3		L.p. Conversion Kit (comment: Used To Convert Dryers From Natural Gas (n.g.) Or Mixed Gas To Liquid Petroleum (l.p.))			Immediately	$ 58.39
