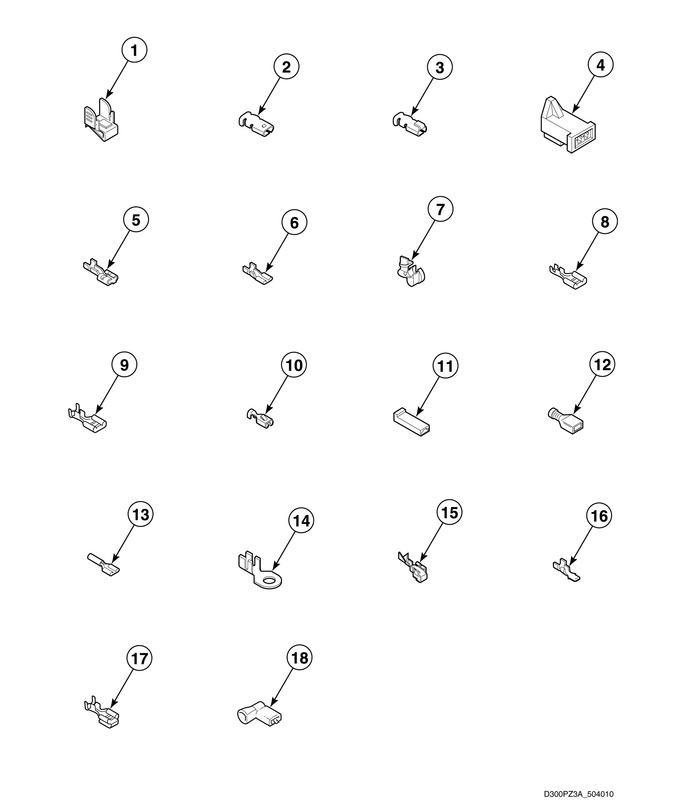

Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	00161		Grounding Clip				$ 11.35
2	00189		Female Spade Terminal		Appelez-nous	-
3	00361		Female Piggyback Terminal		Appelez-nous	-
4	58799		2 Circuit Connector		Appelez-nous	-
5	00121		Female Spade Terminal (comment: 1/4 Inch; (2) 18 Gauge Wires Or (1) 12 Gauge Wire)				$ 35.00
5	00223		Female Spade Terminal (comment: 1/4 Inch; (1) 18 Gauge Wire)		Appelez-nous	-
5	00245		Spade Terminal (comment: 1/4 Inch; (1) 22 Gauge Wire)		Appelez-nous	-
6	BGR1		Female Spade Terminal (comment: 3/16 Inch; (2) 18 Gauge Wires; .020 Tab)   (Replaces: 00209)			Immediately	$ 178.79
6	00156		Female Spade Terminal (comment: 3/16 Inch; Thermostat Wire; .032 Tab)		Appelez-nous	-
6	00124		Female Spade Terminal (comment: 3/16 Inch; (1) 18 Gauge Wire; .020 Tab)				$ 6.95
7	38384		Strain Relief				$ 3.56
8	00346		Terminal		Appelez-nous	-
9	00347		Terminal		Appelez-nous	-
10	00115		Female Spade Terminal (comment: 1/4 Inch; (1) 18 Gauge Wire)		Appelez-nous	-
10	00321		Female Spade Terminal (comment: 1/4 Inch; (2) 18 Gauge Wires Or (1) 12 Gauge Wire)		Appelez-nous	-
11	90789		Receptacle Housing		Appelez-nous	-
12	00359		Ultra Pod Terminal (comment: 1/4 Inch)		Appelez-nous	-
12	00165		Insulated Female Terminal (comment: 3/16 Inch)		Appelez-nous	-
13	00215		Pre-insulated Spade Terminal (comment: 1/4 Inch; 12 Gauge Wire)				$ 8.35
13	N/A		Pre-insulated Spade Terminal (comment: 1/4 Inch; 18 Gauge Wire)		Appelez-nous	-
14	00110		Ring Terminal (comment: 10 Stud; (1) 18 Gauge Wire)				$ 9.23
14	00111		Ring Terminal (comment: 10 Stud; (2) 18 Gauge Wires Or (1) 12 Gauge Wire)		Appelez-nous	-
15	00114		Female Spade Terminal (comment: 1/4 Inch; Double Connector)		Appelez-nous	-
16	00139		Male Tab Terminal (comment: 1/4 Inch; (2) 18 Gauge Wires Or (1) 12 Gauge Wire)		Appelez-nous	-
17	00344		Female Tab Terminal		Appelez-nous	-
18	00345		Flag Insulated Terminal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
