SELECT A DIAGRAM

Access Panel, Front Panel And Seal


Burner Orifice Spuds - For Higher Elevations (gas Models)


Cabinet, Exhaust Duct And Base - Single Dryers


Control Panel And Controls - Rear Control (drawing 2 Of 2)


Cylinder


Front Bulkhead, Air Duct And Felt Seal


Gas Valve, Igniter And Gas Conversion Kits (gas Models)


Heater Duct Assembly (gas Models)


Lead-in Cord (gas Models)


Loading Door - Without Window


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Rear Control Models

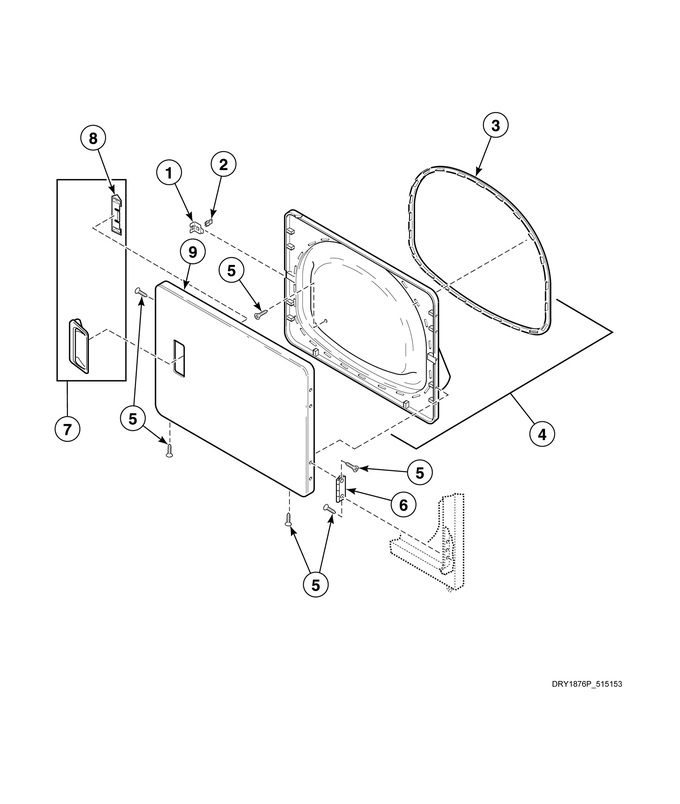

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510127		Door Strike Mount				$ 3.22
2	D510181		Door Strike			Immediately	$ 4.00
3	D510147P		Liner Door Seal				$ 25.09
4	D510163WP		Liner, Seal And Grill Assembly (comment: White; Includes Item 3)			Immediately	$ 233.67
5	D500226		Screw   (Replaces: D514461)				$ 3.88
6	D511036		Hinge			Immediately	$ 4.23
7	D510103WP		Door Pull And Wedge Kit (comment: White; Includes Item 8)			Immediately	$ 8.43
7	D511213P		Door Pull And Wedge Kit (comment: Black; Includes Item 8)				$ 22.36
8	D510129W		Door Handle Wedge				$ 2.80
9	D512969		Dryer Door (comment: Stainless Steel)				$ 586.92
9	D510013WP		Dryer Door (comment: White)			Immediately	$ 145.59

    View Diagram in Separate Window       Print Part List
