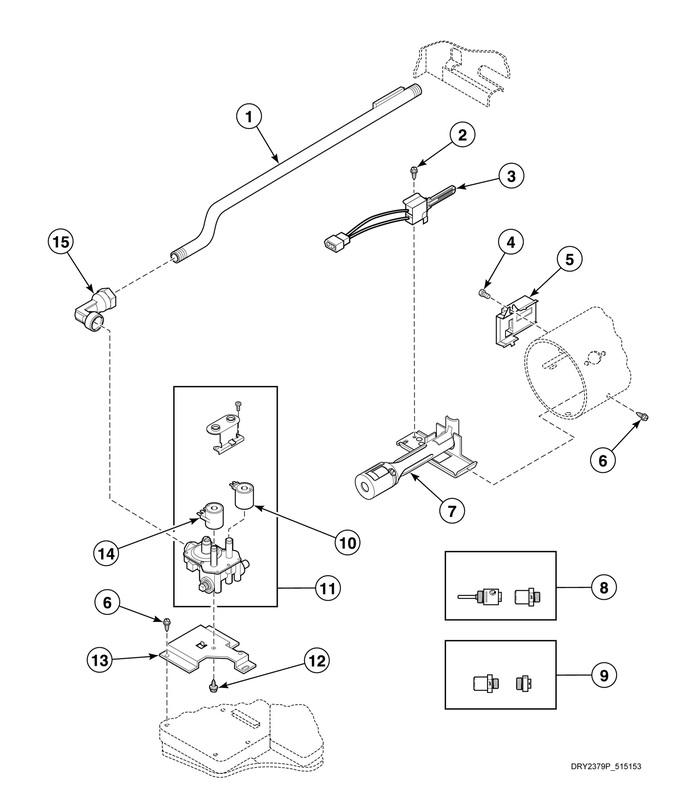

Gas Valve, Igniter And Gas Conversion Kits (gas Models)


Heater Duct Assembly (gas Models)


Lead-in Cord (gas Models)


Loading Door - Without Window


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Rear Control Models


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510204		Lead-in Pipe Assembly				$ 120.22
2	Sub. To D510151W		Screw   (Replaces: 51782)		Appelez-nous	-
3	D510184P		Igniter And Bracket Assembly			Immediately	$ 67.69
4	WP3177991		Screw   (Replaces: 23222)			Immediately	$ 6.47
5	D510213		Sensor				$ 76.88
6	D503688		Screw			Immediately	$ 6.95
7	D510149P		Burner Assembly				$ 55.53
8	649P3		L.p. Conversion Kit (comment: Used To Convert Dryers From Natural Gas (n.g.) Or Mixed Gas To Liquid Petroleum Gas (l.p.); 22,500 Btu)			Immediately	$ 58.39
9	650P3		N.g. Conversion Kit (comment: Used To Convert Dryers From L.p. To N.g. Or Mixed Gas; 22,500 Btu)				$ 84.60
10	279834		Secondary Coil   (Replaces: 58804B)			Immediately	$ 29.57
11	D510506P		Gas Valve Assembly (comment: 22,500 Btu; Includes Items 10 And 14)				$ 542.80
12	WP489128		Screw   (Replaces: 56124)				$ 9.79
13	D510128		Gas Valve Mounting Bracket		Appelez-nous	-
14	58804A		Booster And Holding Coil			Immediately	$ 28.02
15	D513072		Elbow		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
