01 - Cover Sheet


02 - Control Panel


03 - Door

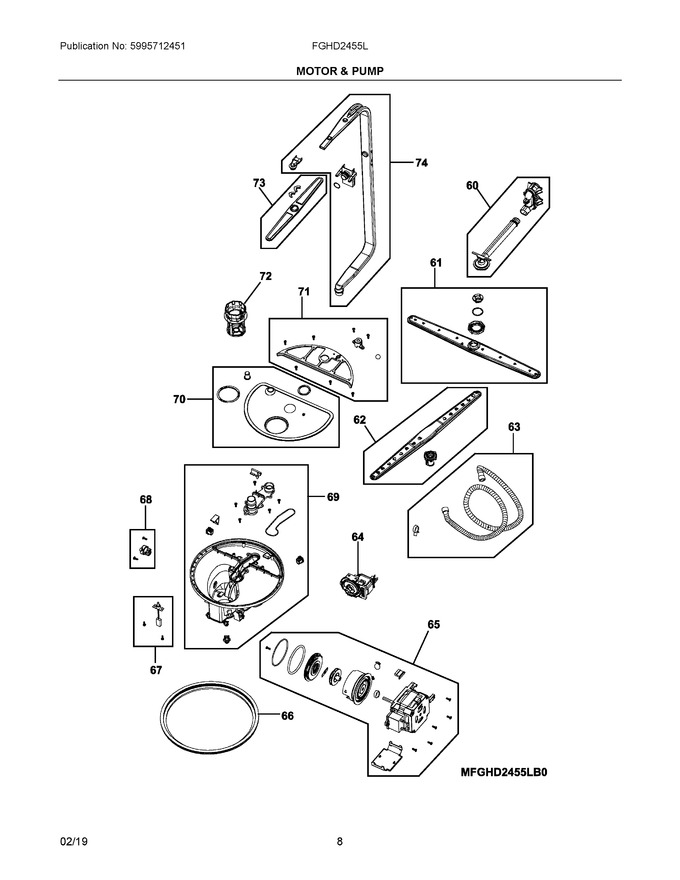

04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
60	5304480739		Duct Assembly, Spray Arm, Middle				$ 32.23
61	5304480740		Spray Arm Assembly, Middle				$ 86.31
62	5304480741		Spray Arm Assembly, Lower				$ 30.40
63	5304494065		Hose Assembly, Drain, W/clamp   (Replaces: 5304475635)			Immediately	$ 92.30
64	5304524920		Pump, Drain   (Replaces: 5304475636)			Immediately	$ 298.81
65	5304475637		Motor Assembly, Wash, W/screws-seals				$ 290.17
66	5304475638		Gasket, Sump				$ 108.41
67	5304475639		Senser Assembly, Thermistor, W/screws				$ 32.03
68	5304475640		Senser Assembly, Turbidity, W/screws				$ 153.09
69	5304480742		Sump Assembly, W/clips-screws				$ 135.37
70	5304480743		Filter Assembly, Coarse				$ 112.17
71	5304475643		Filter Assembly, Fine, W/screws				$ 48.67
72	5304475644		Trap, Glass				$ 59.72
73	5304480744		Spray Arm Assembly, Upper				$ 58.66
74	5304480745		Tube Assembly, Delivery				$ 127.96
