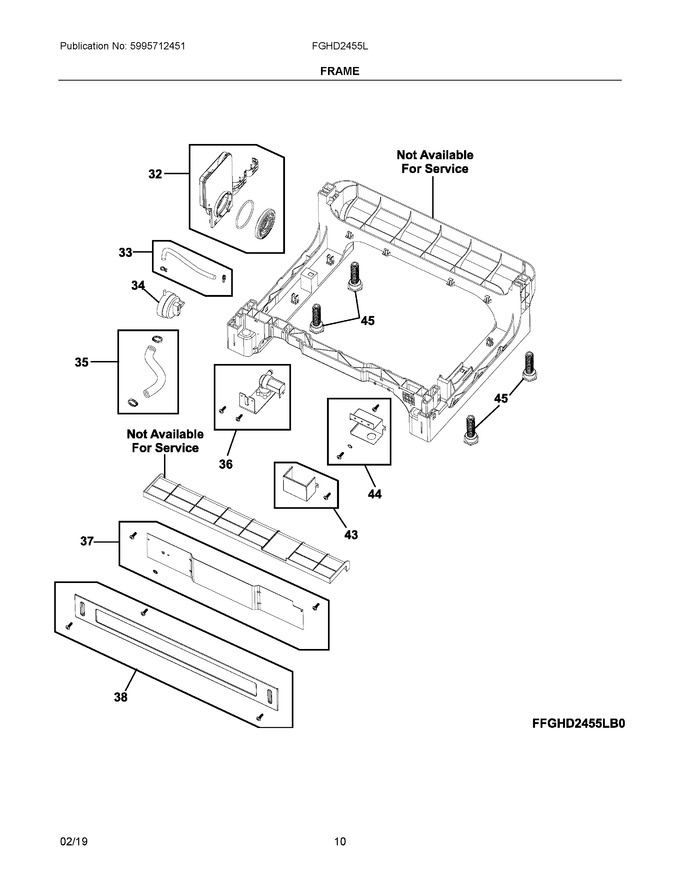

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | 5304494065 | Brake Assembly, Air (Replaces: 5304475604) |
|
Immediately | $ 92.30 | ||||
| 33 | 5304475605 | Hose Assembly, Pressure Switch, W/clamps |
|
$ 11.68 | |||||
| 34 | 5304516645 | Switch, Pressure (Replaces: 5304475606) |
|
Immediately | $ 96.14 | ||||
| 35 | 5304475607 | Hose Assembly, Water Valve, W/clamps |
|
$ 40.95 | |||||
| 36 | 5304482406 | Valve Assembly, Water, W/screws (Replaces: 5304475608) |
|
Immediately | $ 69.62 | ||||
| 37 | 5304475609 | Support Assembly, Kickplate, W/screws |
|
$ 58.82 | |||||
| 38 | 5304475610 | Kickplate Assembly, Black, W/screws |
|
$ 90.72 | |||||
| 43 | 5304475615 | Cover Assembly, Junction Box, W/screw |
|
$ 17.64 | |||||
| 44 | 5304475616 | Box Assembly, Junction, W/screws-washer |
|
- | |||||
| 45 | 5304475617 | Leg, Leveling, (4) |
|
$ 23.63 |
