SELECT A DIAGRAM

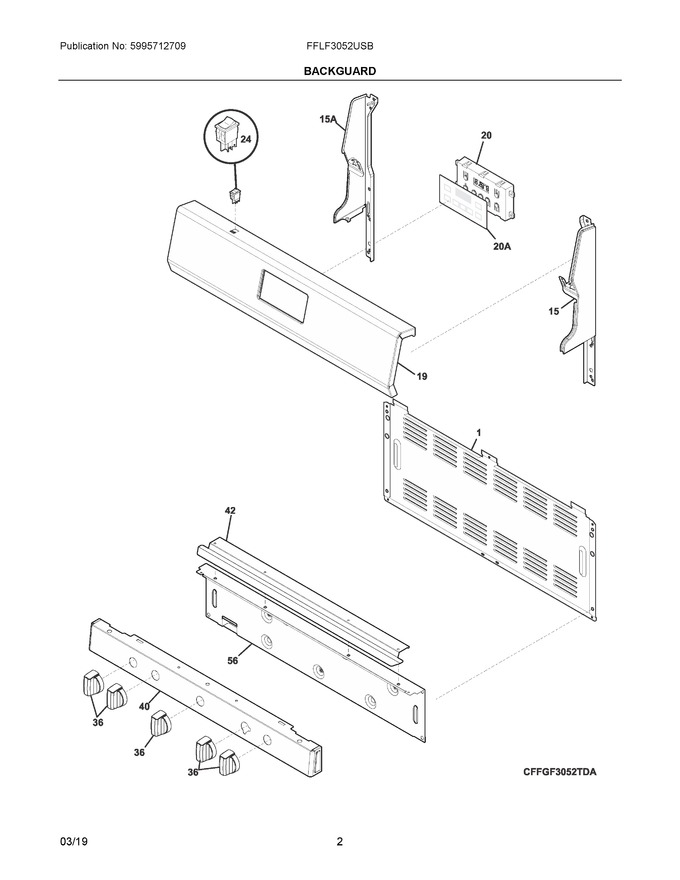

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304509065		Panel, Backguard, Stainless				$ 280.95
20	5304518661		Control, Electronic			Immediately	$ 148.07
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 5304515139)			Immediately	$ 11.38
36	5304507386		Knob, Top Valve, Black				$ 66.74
40	316605370		Panel, Manifold, Black   (Replaces: 316605362)		Appelez-nous	-
42	808754601		Deflector, Backguard				$ 77.97
56	316230708		Shield, Backguard, Inner				$ 61.66
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
20A	316220729		Overlay, Clock, Black			Immediately	$ 26.93
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
