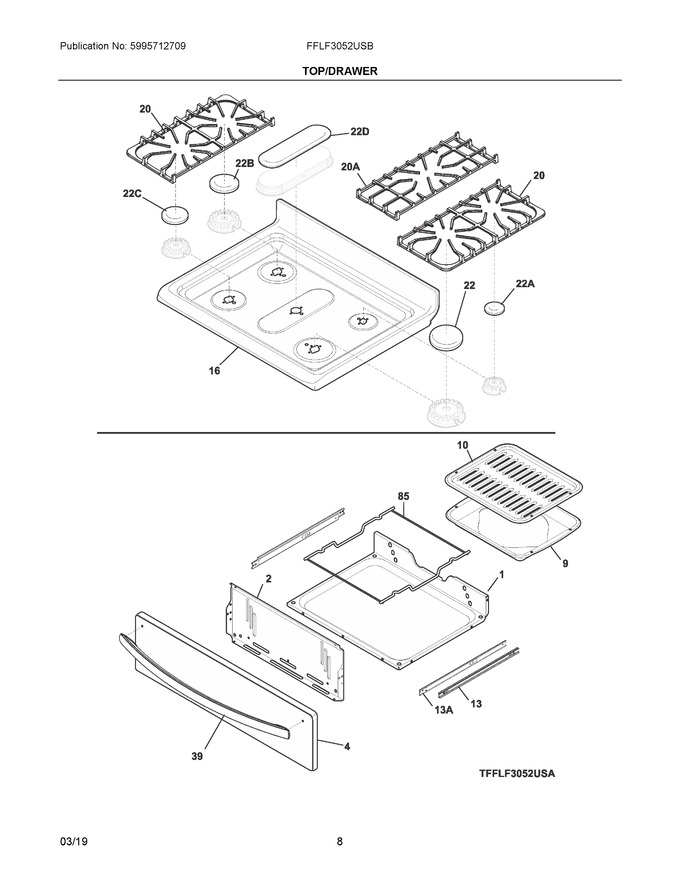

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Low Broil				$ 232.57
2	316236401		Liner, Low Broil				$ 119.96
4	316581603		Drawer Panel, Assy, Stainless, W/ Overlay		Appelez-nous	-
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	316082000		Insert, Broiler Panoptional Access0ry				$ 68.85
13	316111503		Glide, Low Broil, Outer/rh & Lh, (2)		Appelez-nous	-
16	316610006		Main Top, Black				$ 194.90
20	807327101		Grate, Burner, Black, Side, (2)				$ 243.81
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
39	140067504096		Handle, Door, Stainless   (Replaces: 5304507752)				$ 53.48
85	316115601		Rack, Low Broil				$ 15.92
13A	316534200		Glide-low Broil, Inner				$ 42.75
20A	807412601		Grate, Burner, Black, Center				$ 240.26
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap, 12k Burner, Black				$ 46.36
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
2A	316541500		Shield, Broiler				$ 61.37
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021120		Screw, Shoulder Head, 8-18 X 5/8, (2), Square Drive				$ 13.28
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	5303288572		Screw-handle Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
