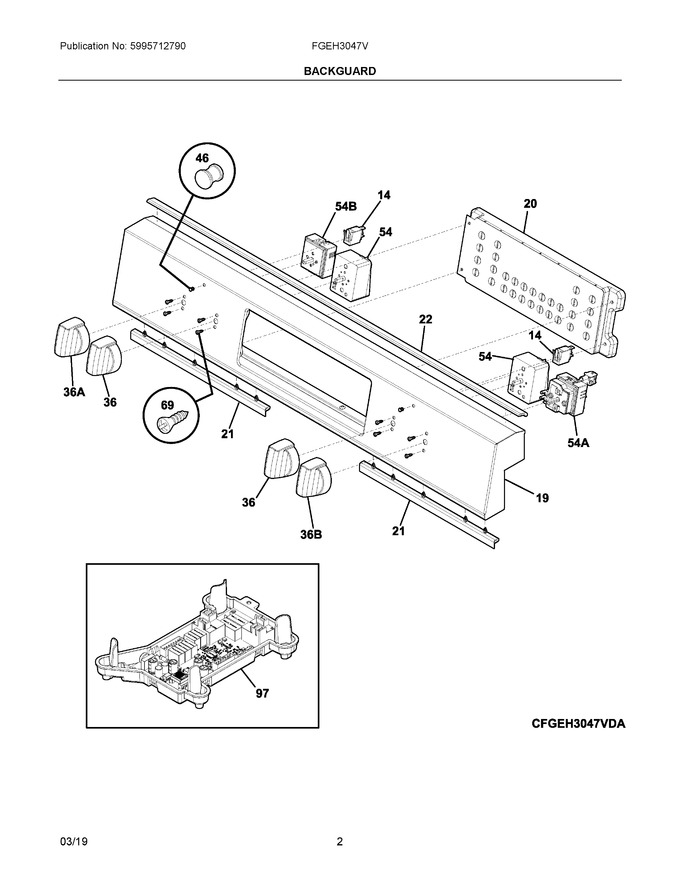

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
19	5304518015		Control Panel, Front, Black Stainless		Appelez-nous	-
20	5304526193		Controller, Electronic, Black, Es501e   (Replaces: 5304516860)			Immediately	$ 314.76
21	5304521020		Seal, Control Panel			Immediately	$ 72.48
22	5304521042		Bumper Guard, Assembly, Magnetic				$ 245.71
36	5304521005		Knob, Infinite Switch, Black Stainless, Single		Appelez-nous	-
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
97	5304516862		Pc Board, Assembly, Ovc3			Immediately	$ 330.67
36A	5304521006		Knob, Infinite Switch, Black Stainless, Dual		Appelez-nous	-
36B	5304521008		Knob, Infinite Switch, Black Stainless, Triple		Appelez-nous	-
54A	807004702		Switch, Triple, Infinite			Immediately	$ 125.69
54B	316238202		Switch, Infinite Radian, Dual			Immediately	$ 128.48
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	5304521010		Harness, Wiring, Backsplash				$ 188.83
NIA	5304521041		Insulator, Controller, W/adhesv Tape				$ 14.41
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67

    View Diagram in Separate Window       Print Part List
