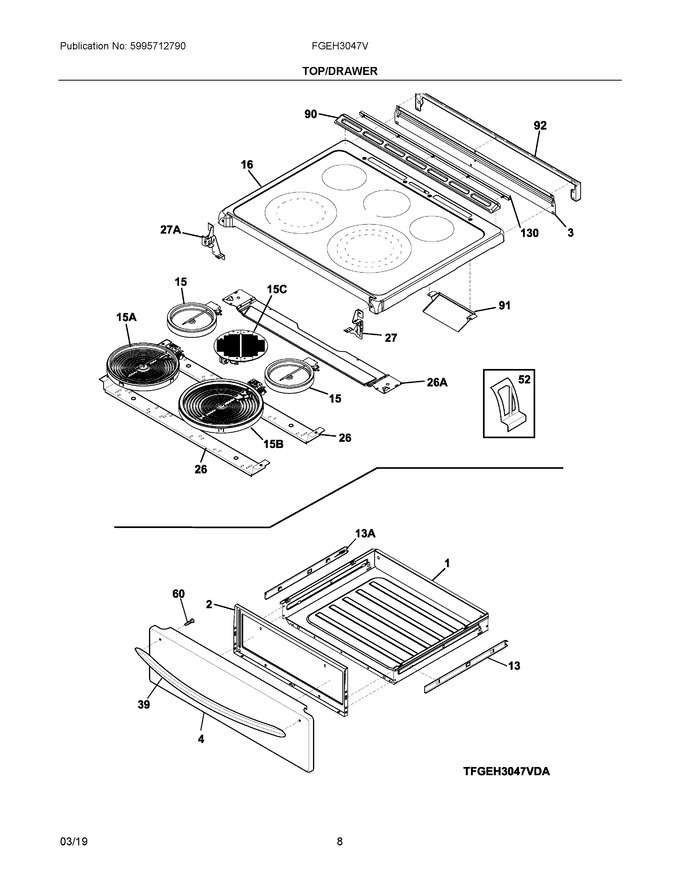

01 - Cover Sheet
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807108405 | Drawer, Warmer |
|
$ 125.44 | |||||
| 2 | 5304527988 | Liner, Black, Drawer (Replaces: 316403203) |
|
Immediately | $ 26.54 | ||||
| 3 | 5304514133 | Shield, Rear Wall, Upper |
|
$ 34.89 | |||||
| 4 | 5304517133 | Panel, Drawer, Black Stainless |
|
$ 193.99 | |||||
| 13 | 316415000 | Glide, Warmer, Inner Rh |
|
$ 58.82 | |||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 5304516852 | Smoothtop, Assembly, Glass/steel, Black |
|
Immediately | $ 539.20 | ||||
| 26 | 5304512926 | Channel, Element Support |
|
$ 46.22 | |||||
| 27 | 5304514123 | Bracket, Mounting, Rh, Cooktop |
|
$ 13.65 | |||||
| 39 | 5304518030 | Handle, Door/drawer, Black Stainless |
|
$ 157.60 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 90 | 5304514157 | Trim, Vent, Black, Rear |
|
$ 61.43 | |||||
| 91 | 5304514181 | Deflector, Moisture, (2) |
|
$ 10.63 | |||||
| 92 | 5304520261 | Rear Filler Kit, Fcfs Range, Black |
|
Immediately | $ 163.81 | ||||
| 130 | 808931802 | Seal, Maintop, Silicone, Rear |
|
$ 40.19 | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 58.82 | ||||
| 15A | 5304533521 | Element, Dual, 9/6", Surface, 1400/3200w (Replaces: 5304516844) |
|
Immediately | $ 91.16 | ||||
| 15B | 318297810 | Element, Triple, 1200/2000/3000w, 6"/9"/12 |
|
Immediately | $ 356.54 | ||||
| 15C | 5304521951 | Element, Surface, Warmer (Replaces: 5304509306) |
|
Immediately | $ 64.46 | ||||
| 26A | 5304514126 | Bracket, Support, Rear, Chassis |
|
- | |||||
| 27A | 5304514124 | Bracket, Mounting, Lh, Cooktop |
|
$ 13.65 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5304516837 | Harness, Wiring, Surface |
|
Immediately | $ 179.73 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
