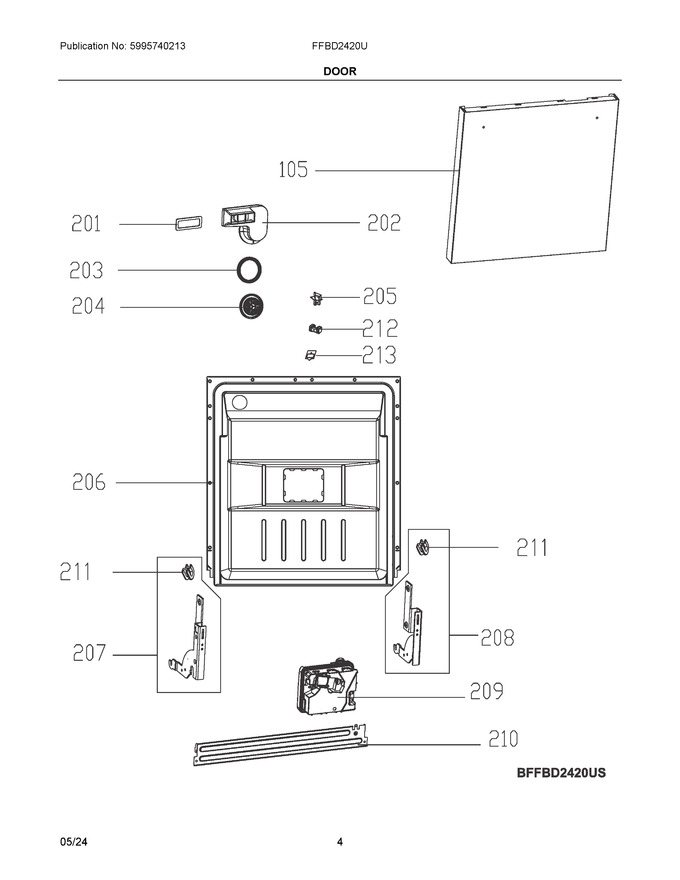

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
105	5304519936		Door, Outer, Black		Appelez-nous	-
201	5304519219		Gasket, Air Vent		Appelez-nous	-
202	5304519220		Vent, Air, Door Top				$ 60.01
203	5304519221		Seal, Air Vent, Door Liner				$ 12.65
204	5304519222		Nut, Air Vent, Door Liner				$ 60.01
205	5304519223		Hook, Door Lock				$ 60.72
206	5304519290		Liner, Door, Inner				$ 94.12
207	5304519980		Hinge Kit, Lh, W/fric Grommet				$ 129.69
208	5304519981		Hinge Kit, Rh, W/fric Grommet				$ 129.69
209	5304519227		Dispenser, Detergent				$ 144.59
210	5304519291		Bracket, Reinforcement, Door Hinge		Appelez-nous	-
211	5304519229		Grommet, Hinge Friction		Appelez-nous	-
212	5304519230		Block, Door Lock		Appelez-nous	-
213	5304519231		Seal, Door Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
