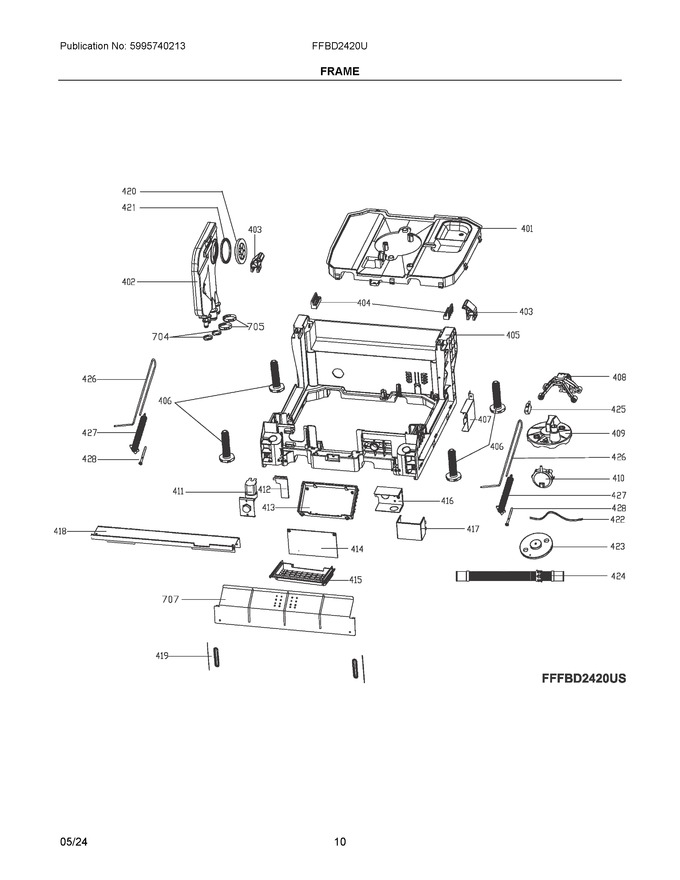

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
401	5304519294		Base, Assembly		Appelez-nous	-
402	5304519245		Duct Assembly, Air Breather				$ 142.36
403	5304516644		Block, Tub Connecting, (2)				$ 15.18
404	5304519246		Support, Tub		Appelez-nous	-
405	5304519295		Base Assembly, Pan		Appelez-nous	-
406	5304519248		Foot, Leveling				$ 67.66
407	5304519249		Bracket, Motor		Appelez-nous	-
408	5304519250		Support, Assembly, Pump		Appelez-nous	-
409	5304519251		Holder, Assembly, Float				$ 64.34
410	5304519296		Switch, Pressure				$ 120.01
411	5304519252		Valve, Water Inlet				$ 119.43
412	5304519253		Block, Inlet Valve		Appelez-nous	-
413	5304519254		Housing, Main Board		Appelez-nous	-
414	5304519939		Pc Board, Main		Appelez-nous	-
415	5304519255		Cover, Main Board				$ 51.89
416	5304516657		Box, Junction A		Appelez-nous	-
417	5304516664		Box, Junction B				$ 19.52
418	5304519297		Shield, Anti-noise		Appelez-nous	-
419	5304519298		Toe Plate, Adjustable		Appelez-nous	-
420	5304519258		Nut, Air Breaker, Tub				$ 60.10
421	5304516636		Gasket, Washer, (3)				$ 11.71
422	5304519299		Tubing		Appelez-nous	-
423	5304516654		Float				$ 15.33
424	5304525488		Drain Hose, Assembly   (Replaces: 5304519260)			Immediately	$ 46.53
425	5304516666		Switch, Float				$ 38.12
426	5304519261		Cable, Door Hinge		Appelez-nous	-
427	5304519262		Spring Assembly, Door Hinge		Appelez-nous	-
428	5304519263		Screw, Adjustment, Door Spring		Appelez-nous	-
704	5304538466		Clamp, Tube, In/outlet, Valve To Air Br   (Replaces: 5304523307)				$ 2.31
705	5304523308		Clamp, Tube, In/outlet, Drain - Air Brk			Immediately	$ 7.09
707	5304519940		Kickplate		Appelez-nous	-
