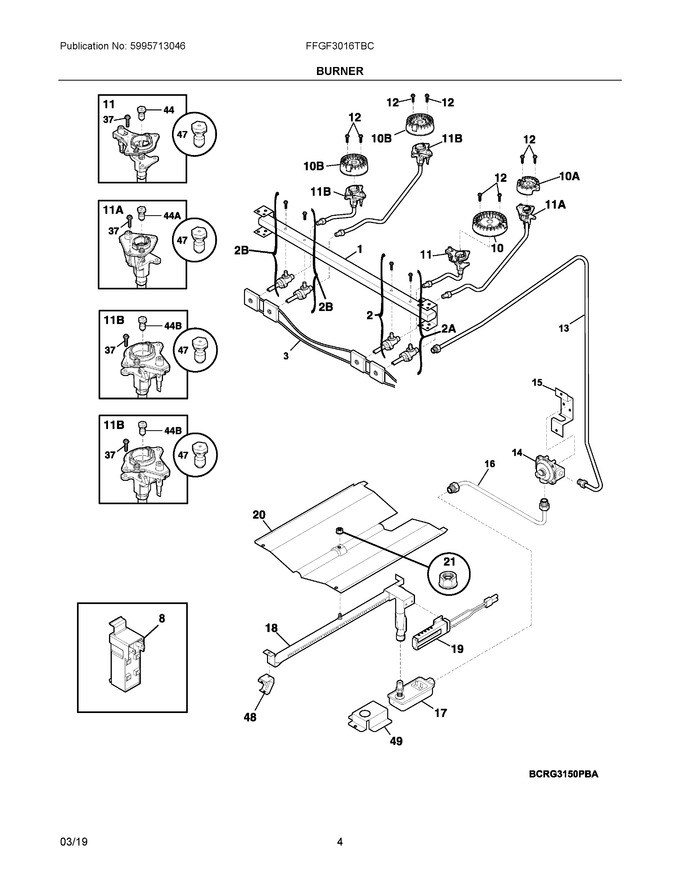

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304514361		Manifold, Pipe		Appelez-nous	-
2	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
3	5304506555		Harness, Ignition				$ 78.52
8	808608802		Spark Module			Immediately	$ 82.93
10	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
11	316536614		Ignitor/orifice Assy., Top Burner, Right Front, 14k, W/holder, Tube				$ 112.27
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	5304513126		Tube, 3/8, Aluminum, Rgltr To Manf, W/fittings		Appelez-nous	-
14	5304521339		Regulator, Pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket, Regulator				$ 73.56
16	316065006		Tube, Valve To Regul, 3/8				$ 122.09
17	3203459		Valve, Safety				$ 303.64
18	316114300		Burner, Oven				$ 169.88
19	5304509706		Ignitor, Oven Burner			Immediately	$ 189.59
20	316496001		Baffle, Oven Burner				$ 78.33
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527511		Orifice, Burner, 14k				$ 19.85
47	GRLP4		Lp Conversion Kit, W/instructions, Optional, Accessory			Immediately	$ 56.70
48	3018603		Bracket, Support, Oven Burner		Appelez-nous	-
49	316416300		Bracket, Safety Valve		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
11A	316536610		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube			Immediately	$ 92.38
11B	316536600		Ignitor/orifice Assy., Top Burner, Left Rear, 9.5k, W/holder, Tube				$ 124.27
11C	316536602		Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube				$ 132.62
2A	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2B	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
44A	316527504		Orifice, Burner, 5k				$ 22.68
44A	316527502		Orifice, Burner, 12k				$ 22.68
44B	316527500		Orifice, Burner, 9.5k				$ 21.40
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304535516		Harness-ignitor   (Replaces: 316580601)				$ 68.28
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NIA	316257400		Bracket, Spark Module				$ 15.17
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIA	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
