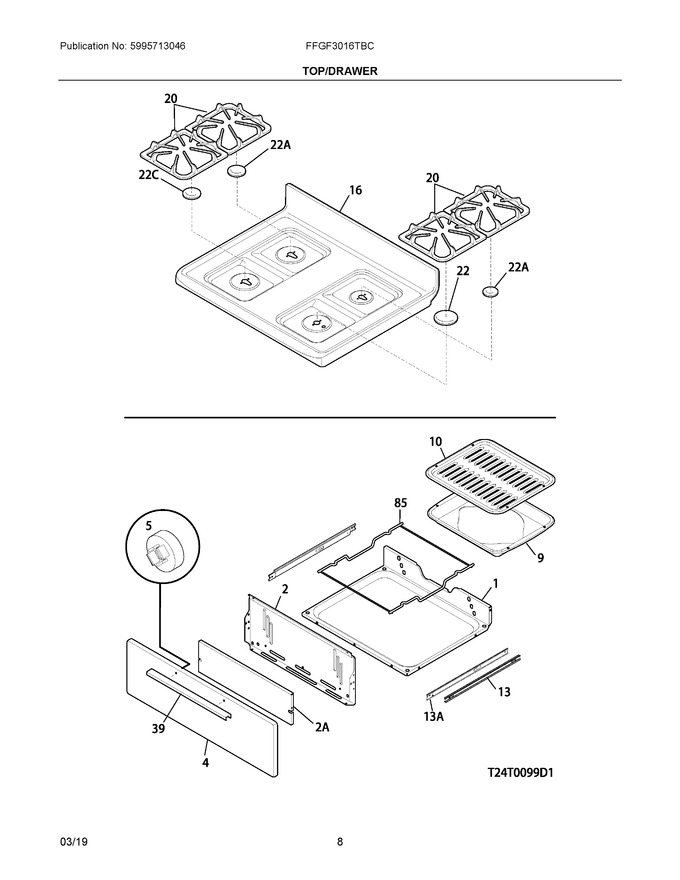

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Low Broil				$ 232.57
2	316236401		Liner, Low Broil				$ 119.96
4	316231242		Panel, Drawer, Black		Appelez-nous	-
5	316129100		Fastener, Push-in Nut, Nylon, Spacer		Appelez-nous	-
9	316081902		Pan, Broiler, Slate Blue				$ 83.42
10	316082002		Insert, Broiler Pan, Slate Blue				$ 81.14
13	316111503		Glide, Low Broil, Outer/rh & Lh, (2)		Appelez-nous	-
16	316610054		Main Top, Black		Appelez-nous	-
20	316463200		Grate, Gloss Black, (4)				$ 129.00
22	316262000		Cap, 14k Burner, Black				$ 54.13
39	316019512		Handle, Drawer, Black		Appelez-nous	-
54	5303271606		Housing, Oven Light		Appelez-nous	-
85	316115601		Rack, Low Broil				$ 15.92
13A	316534200		Glide-low Broil, Inner				$ 42.75
22A	316261700		Cap, 5k Burner, Black				$ 43.99
22C	316261800		Cap, 9.5k Burner, Black, (3)		Appelez-nous	-
2A	316541500		Shield, Broiler				$ 61.37
NI	316021120		Screw, Shoulder Head, 8-18 X 5/8, (2), Square Drive				$ 13.28
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
