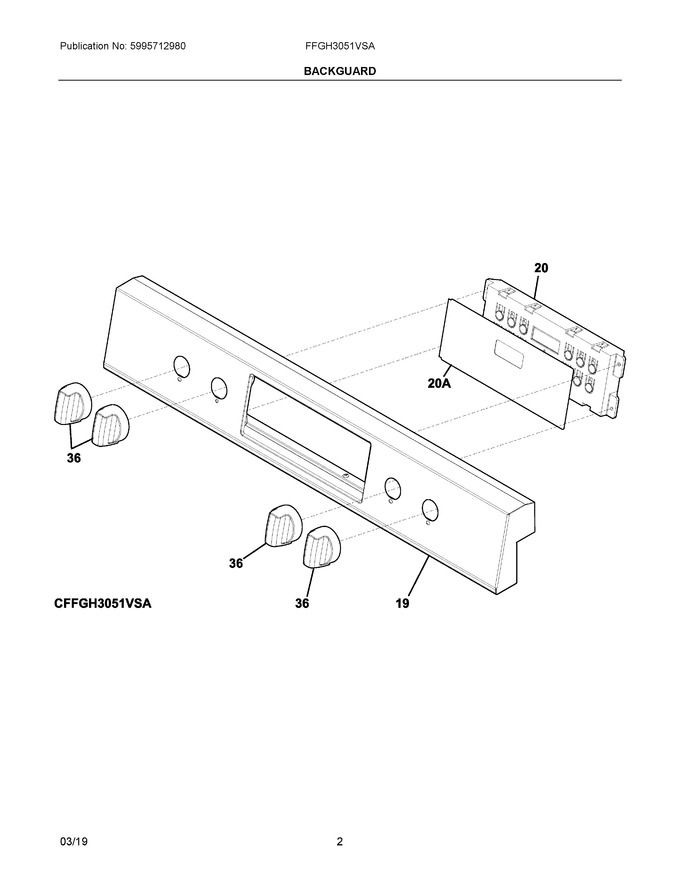

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	5304520364		Panel, Control, Stainless		Appelez-nous	-
20	5304515503		Controller, Electronic, Es332		Appelez-nous	-
36	5304514114		Knob, Top Valve, Stainless			Immediately	$ 97.07
20A	316419387		Overlay, Clock, Black, Es332				$ 35.65
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
