SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

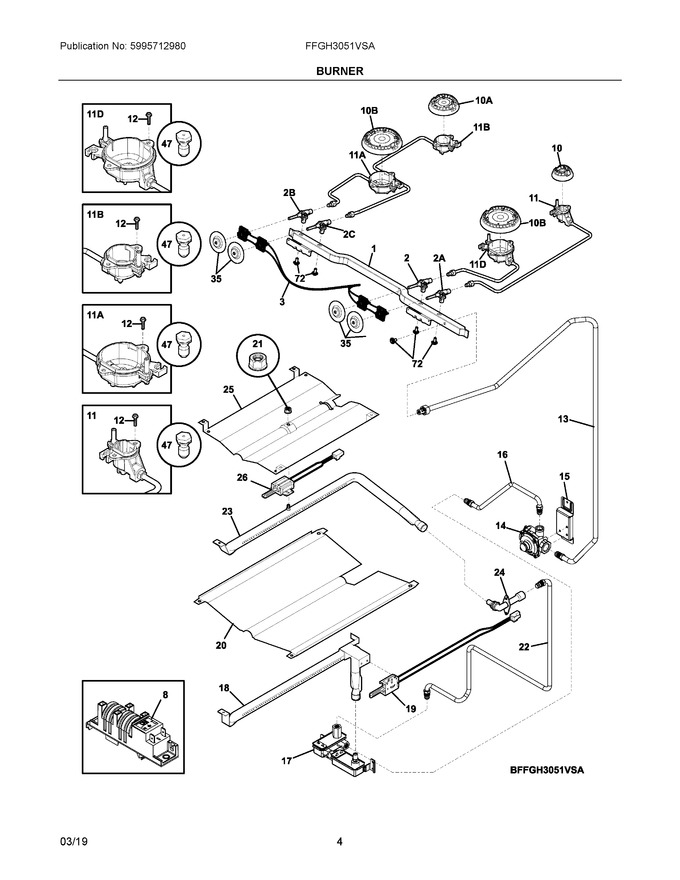

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304515512		Manifold		Appelez-nous	-
2	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
3	5304520381		Harness, Ignition		Appelez-nous	-
8	808608802		Spark Module			Immediately	$ 82.93
10	5304520367		Burner, Crown, Small, Aft			Immediately	$ 20.48
11	5304520386		Ignitor/orifice Assembly, 5k, Right Rear		Appelez-nous	-
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	5304514135		Tube, Manifold Supply		Appelez-nous	-
14	316091711		Regulator, Pressure			Immediately	$ 90.03
15	316603300		Bracket, Regulator				$ 22.75
16	5304514182		Tube, Safety Valve		Appelez-nous	-
17	316031501		Valve, Safety			Immediately	$ 296.26
18	316404400		Burner, Oven				$ 109.10
19	316489403		Ignitor, Bake   (Replaces: 5304508786)			Immediately	$ 113.15
20	5304519024		Baffle, Oven Burner			Immediately	$ 80.39
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304514183		Tube, Safety Valve, To Mixer		Appelez-nous	-
23	316404302		Burner, Broiler				$ 104.18
24	5304516894		Elbow, Mixer				$ 87.21
25	5304497666		Baffle, Broiler				$ 94.04
26	5304506545		Ignitor, Broiler			Immediately	$ 94.21
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
47	GRLP4		Lp Conversion Kit, W/instructions, Optional, Accessory			Immediately	$ 56.70
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	5304520368		Burner, Crown, Medium, Aft				$ 25.02
10B	5304520369		Burner, Crown, Large, Aft			Immediately	$ 36.50
11A	5304520384		Ignitor/orifice Assembly, 12k, Left Front, Assembly				$ 87.97
11B	5304520385		Ignitor/orifice Assembly, 9.5k, Left Rear, Assembly				$ 84.18
11D	5304520387		Ignitor/orifice Assembly, 17k, Right Front, Assembly		Appelez-nous	-
2A	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2B	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
2C	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
NI	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NIA	316401500		Cover, Broil Ignitor				$ 12.89
NIA	316498100		Shield, Wire, Safety Valve				$ 15.17

    View Diagram in Separate Window       Print Part List
