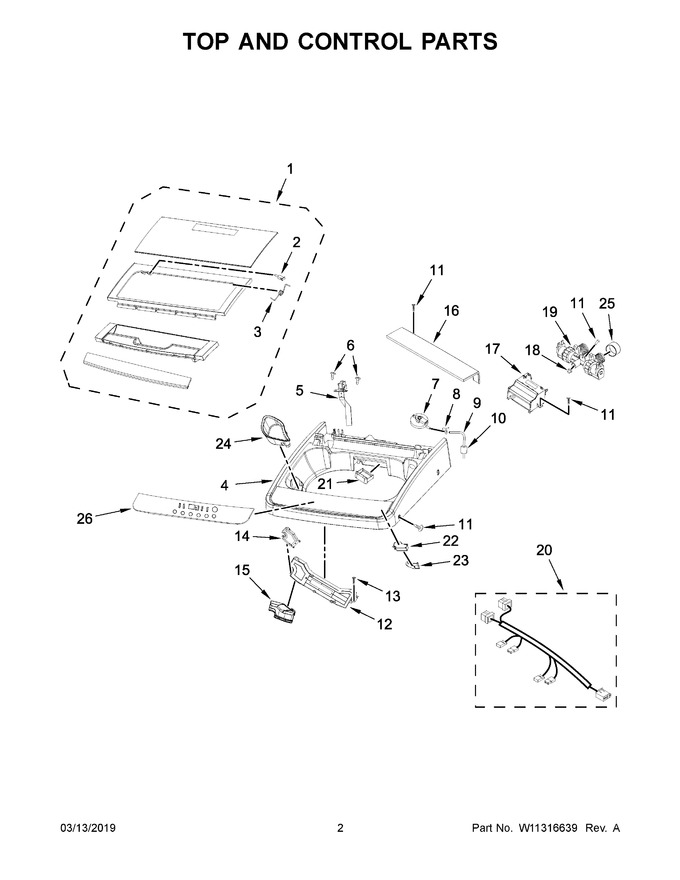

02 - Top And Control Parts


03 - Cabinet Parts


04 - Basket And Gear Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10892043		Lid   (Replaces: W10869483)		Appelez-nous	-
2	W10869489		Hinge		Appelez-nous	-
3	W10869493		Spring		Appelez-nous	-
4	W10869494		Top		Appelez-nous	-
5	W10869495		Switch, Off Balance				$ 122.09
6	W10869499		Screw		Appelez-nous	-
7	W11662130		Switch, Pressure   (Replaces: W10869500)			Immediately	$ 28.99
8	W11832205		Clamp, Hose   (Replaces: W10883610)				$ 18.26
9	W10882407		Hose, Pressure Switch			Immediately	$ 45.98
10	W10882410		Sleeve, Hose		Appelez-nous	-
11	W11296992		Screw   (Replaces: W10869502)		Appelez-nous	-
12	W11359390		Machine Control Unit   (Replaces: W11356255)		Appelez-nous	-
13	W10869504		Screw				$ 27.95
14	W10869508		Cover, Control (upper)		Appelez-nous	-
15	W10869509		Cover, Control (lower)		Appelez-nous	-
16	W10883612		Cover, Rear		Appelez-nous	-
17	W10869510		Housing, Detergent Dispenser		Appelez-nous	-
18	W10883613		Connector, Water Valve		Appelez-nous	-
19	W10906602		Valve, Water Inlet   (Replaces: W10869511)			Immediately	$ 186.03
20	W11356258		Main Harness		Appelez-nous	-
21	W10869787		Drawer, Detergent		Appelez-nous	-
22	W11371714		Latch, Lid Lock   (Replaces: W10869789)			Immediately	$ 214.64
23	W10881968		Cover, Lid Lock		Appelez-nous	-
24	W10883614		Bezel, Bleach Dispenser		Appelez-nous	-
25	W11356260		Cap, Inlet Valve		Appelez-nous	-
26	W11356297		Fascia (whirlpool)		Appelez-nous	-
