SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Control Parts


03 - Cabinet Parts

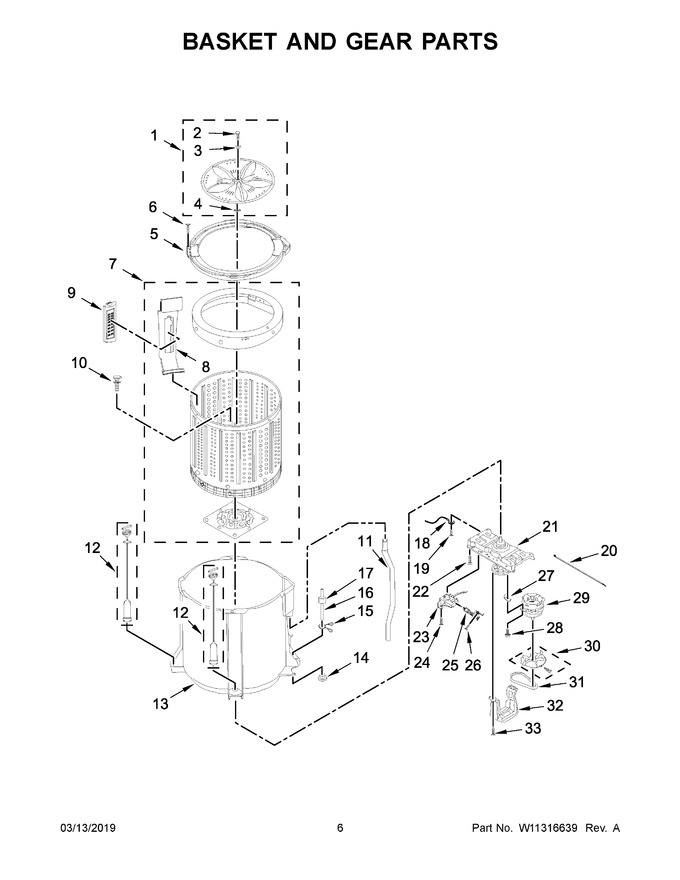

04 - Basket And Gear Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10882404		Impeller (complete)   (Replaces: W10882346)				$ 153.91
2	W11577483		Screw, Impeller   (Replaces: W10882362)				$ 12.65
3	W11577483		Washer, Lock   (Replaces: W10882370)				$ 12.65
4	W10882661		Washer, Impeller   (Replaces: W10882372)		Appelez-nous	-
5	W11766508		Tub Ring   (Replaces: W10882109)			Immediately	$ 48.20
6	W10869499		Screw		Appelez-nous	-
7	W11356262		Basket Assembly		Appelez-nous	-
8	W11356264		Retainer, Lint Filter		Appelez-nous	-
9	W11684623		Filter, Lint   (Replaces: W10882130)			Immediately	$ 18.82
10	W10883753		Screw		Appelez-nous	-
11	W10883781		Hose, Overflow		Appelez-nous	-
12	W10882240		Suspension Damper Assembly (includes 3 Standard, 1 Motor Side, 4 Ball Seats And 4 Retainer Pins)		Appelez-nous	-
13	W10882132		Tub			Immediately	$ 259.58
14	W11178808		Bolt   (Replaces: W11356265)				$ 11.55
15	W11832205		Clamp, Hose   (Replaces: W10883610)				$ 18.26
16	W10882407		Hose, Pressure Switch			Immediately	$ 45.98
17	W10882410		Sleeve, Hose		Appelez-nous	-
18	W10869829		Wire, Ground		Appelez-nous	-
19	W10869822		Screw		Appelez-nous	-
20	W10883819		Cable Tie		Appelez-nous	-
21	W11665996		Gearcase   (Replaces: W10883783)			Immediately	$ 323.72
22	W10883787		Screw		Appelez-nous	-
23	W11614637		Actuator, Shift   (Replaces: W11356267)			Immediately	$ 97.09
24	W10883805		Screw		Appelez-nous	-
25	W10883809		Bracket, Actuator			Immediately	$ 40.24
26	W10882000		Screw		Appelez-nous	-
27	W10883812		Spacer (motor)		Appelez-nous	-
28	W10883817		Screw		Appelez-nous	-
29	W11189163		Motor, Drive   (Replaces: W11356269)			Immediately	$ 332.05
30	W10882138		Pulley, Motor			Immediately	$ 87.80
31	W11676809		Belt, Drive   (Replaces: W10882141)				$ 23.61
32	W10882148		Bracket, Motor Support		Appelez-nous	-
33	W10883826		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
