SELECT A DIAGRAM
01 - Cover Sheet

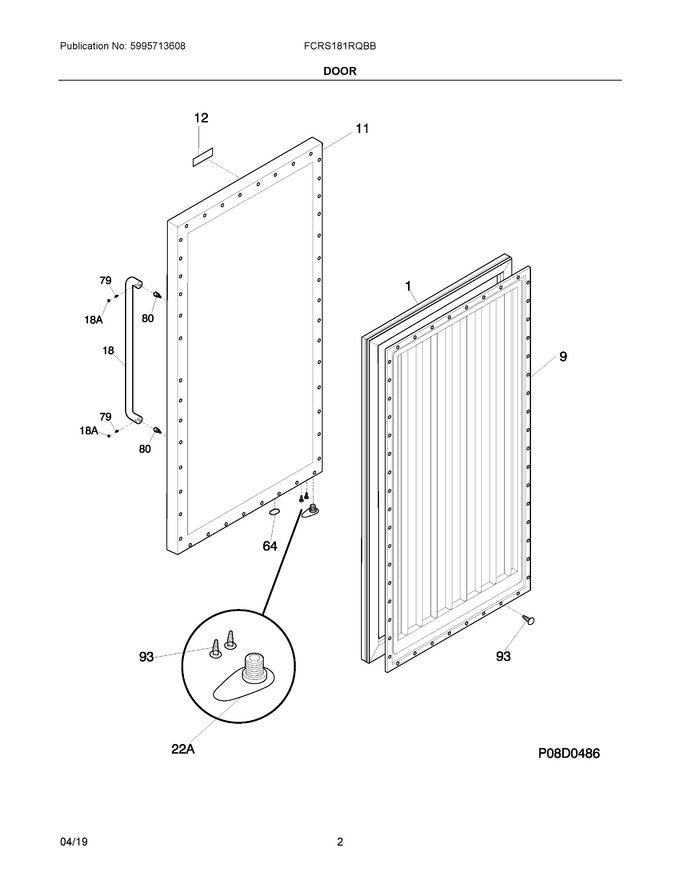

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506124 | Gasket, Black (Replaces: 5304505566) |
|
Immediately | $ 204.56 | ||||
| 9 | 297440101 | Panel, Door |
|
$ 207.67 | |||||
| 11 | 297255303 | Panel-outer Door |
|
$ 403.28 | |||||
| 12 | 297073400 | Nameplate, Commercial, Stainless |
|
$ 124.03 | |||||
| 18 | 297082700 | Handle, Stainless |
|
$ 223.02 | |||||
| 64 | 216403700 | Plug-button, Hole Filler, Door Base (Replaces: 216403701) |
|
$ 58.12 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| 18A | 297083500 | Plug-handle |
|
- | |||||
| 21A | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng (Replaces: 216850900) |
|
$ 13.46 | |||||
| 22A | 216335400 | Bearing-hinge |
|
$ 67.73 | |||||
| NI | 240537301 | Nut-anchor, Door Hdl Screw |
|
$ 11.34 | |||||
| NI | 218990001 | Screw-anchor, 8-18 (Replaces: 5300158222) |
|
$ 16.30 | |||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 |
