SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

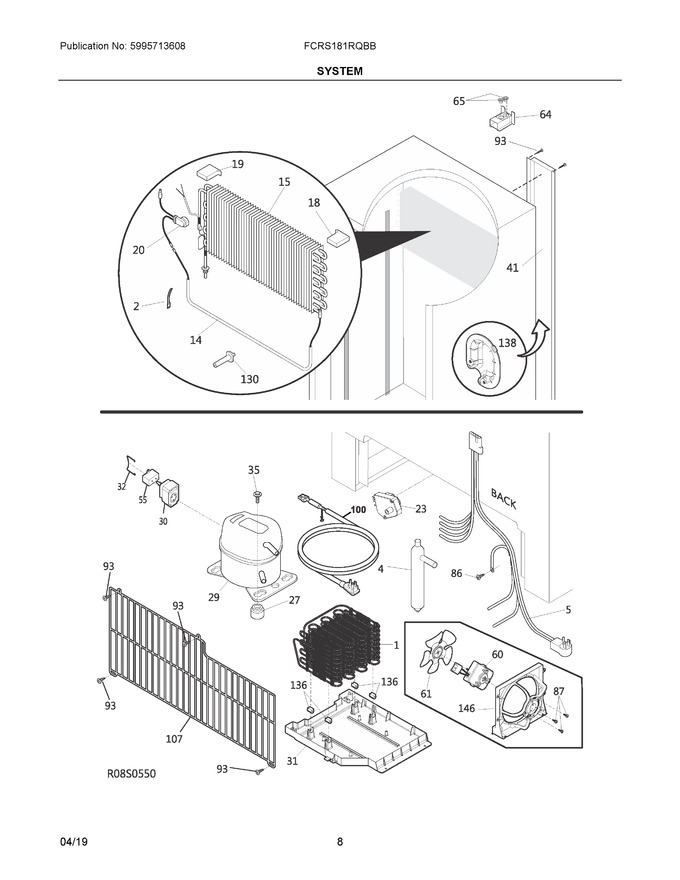

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396860)			Immediately	$ 31.67
5	297337301		Harness-main		Appelez-nous	-
14	216730700		Heater-defrost			Immediately	$ 116.44
15	297311300		Evaporator				$ 201.73
16	297139500		Socket, Light/lamp				$ 18.08
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 57.55
27	297368501		Bolt, Compressor				$ 4.96
29	240550948		Compressor   (Replaces: 297414054)			Immediately	$ 292.50
30	297259515		Controller, Compressor   (Replaces: 297259502)				$ 74.42
31	297165800		Pan-drain				$ 89.15
32	216954300		Clip, Controller				$ 17.01
35	216273000		Clip, Wire Retainer				$ 22.42
41	297070700		Cover-wiring, Rear		Appelez-nous	-
55	297286803		Capacitor-run			Immediately	$ 28.77
60	242018301		Motor-condenser Fan   (Replaces: 297279502)			Immediately	$ 138.56
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
100	297366805		Cord, Power   (Replaces: 297366800)				$ 68.68
107	297225501		Cover, Access				$ 74.81
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
130	297244700		Support, Evaporator Mtg				$ 4.26
136	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
138	297070801		Cover-drain Hose				$ 10.63
146	297164000		Shroud-fan Orfice				$ 76.97
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	297082300		Harness-jumper		Appelez-nous	-
NI	297111000		Standoff		Appelez-nous	-
NI	297315800		Clip, Wire				$ 10.13
NI	5303311565		Clip-cable				$ 2.10
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
NIA	297318700		Vent Assy, W/breather Valv				$ 20.48
NIA	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41

    View Diagram in Separate Window       Print Part List
