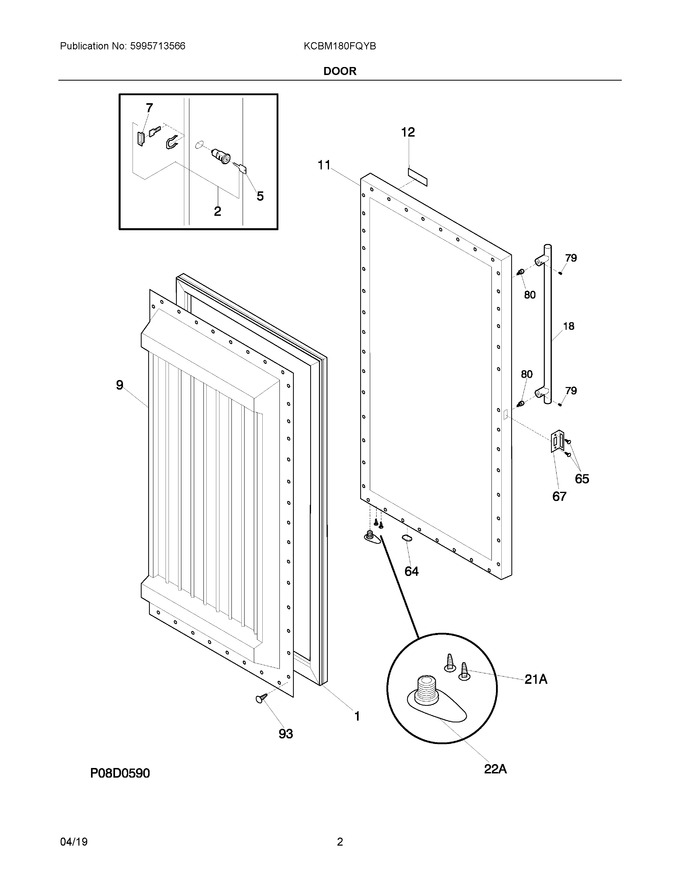

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506124		Gasket, Black   (Replaces: 5304505566)			Immediately	$ 204.56
2	216362700		Lock Assy				$ 90.30
5	216362800		Key, Lock				$ 5.79
7	216468700		Bezel-lock				$ 35.28
9	297440101		Panel, Door				$ 207.67
11	297255302		Panel-outer Door				$ 280.39
12	297146601		Nameplate, Commercial		Appelez-nous	-
18	297314000		Handle				$ 143.88
64	297014702		Plug-button, Door Base				$ 9.41
65	216423501		Screw-retainer		Appelez-nous	-
67	216423000		Retainer-lock		Appelez-nous	-
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
21A	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng   (Replaces: 216850900)				$ 13.46
22A	216335400		Bearing-hinge				$ 67.73
NI	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NI	218990001		Screw-anchor, 8-18   (Replaces: 5300158222)				$ 16.30
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
