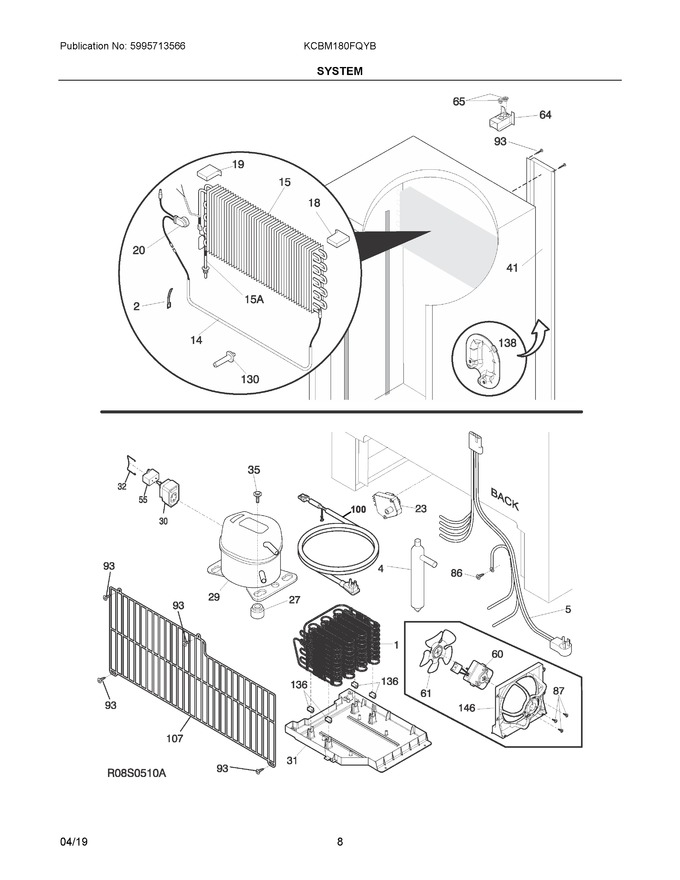

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 2 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396860) |
|
Immediately | $ 31.67 | ||||
| 5 | 297337301 | Harness-main |
|
- | |||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| 15 | 297311300 | Evaporator |
|
$ 201.73 | |||||
| 16 | 297139500 | Socket, Light/lamp |
|
$ 18.08 | |||||
| 18 | 297078701 | Insulator-evap, Styrofoam, Rh |
|
$ 3.62 | |||||
| 19 | 297078801 | Insulator-evap, Styrofoam, Lh |
|
$ 3.62 | |||||
| 20 | 297216600 | Thermostat, Defrost |
|
Immediately | $ 27.52 | ||||
| 23 | 5304518034 | Timer, Defrost, 115v, Tab (Replaces: 297318010) |
|
Immediately | $ 57.55 | ||||
| 27 | 216498900 | Grommet, Compressor (Replaces: 297293302) |
|
$ 13.01 | |||||
| 29 | 216966900 | Compressor, Assy |
|
- | |||||
| 30 | 216894200 | Starter, Relay |
|
Immediately | $ 35.44 | ||||
| 31 | 297165800 | Pan-drain |
|
$ 89.15 | |||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 22.42 | |||||
| 41 | 297070700 | Cover-wiring, Rear |
|
- | |||||
| 53 | 216894500 | Cover-terminal |
|
- | |||||
| 60 | 242018301 | Motor-condenser Fan (Replaces: 297279502) |
|
Immediately | $ 138.56 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 64 | 216578800 | Vent |
|
$ 47.83 | |||||
| 65 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| 100 | 297366805 | Cord, Power (Replaces: 297366800) |
|
$ 68.68 | |||||
| 107 | 297225501 | Cover, Access |
|
$ 74.81 | |||||
| 116 | 216383800 | Gasket-evap Cover, Front |
|
- | |||||
| 130 | 297244700 | Support, Evaporator Mtg |
|
$ 4.26 | |||||
| 136 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 19.85 | |||||
| 138 | 297070801 | Cover-drain Hose |
|
$ 10.63 | |||||
| 146 | 297164000 | Shroud-fan Orfice |
|
$ 76.97 | |||||
| 15A | 297363100 | Heat Exchanger (Replaces: 297219100) |
|
$ 148.92 | |||||
| 31A | 216100126 | Overload Protector |
|
$ 85.30 | |||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 5304485759 | Tape, Foil (Replaces: 216737600) |
|
$ 0.71 | |||||
| NI | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 297082300 | Harness-jumper |
|
- | |||||
| NI | 297315800 | Clip, Wire |
|
$ 10.13 | |||||
| NI | 5303311565 | Clip-cable |
|
$ 2.10 | |||||
| NI | 297111000 | Standoff |
|
- | |||||
| NIA | 297318700 | Vent Assy, W/breather Valv |
|
$ 20.48 | |||||
| NIA | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 14.41 | |||||
| NIA | 216987800 | Adapter-harness |
|
$ 48.20 |
