01 - Cover Sheet

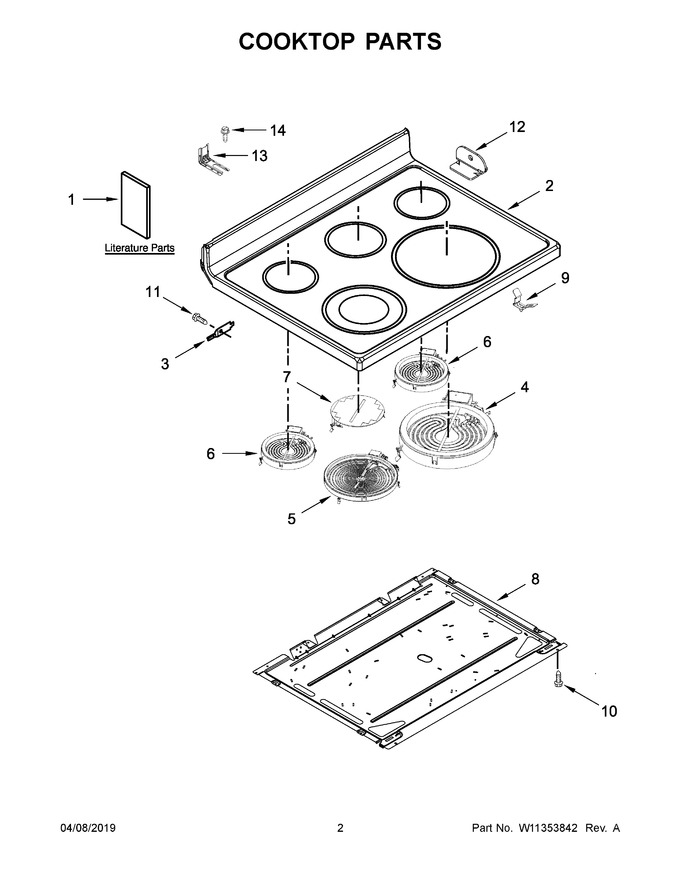

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667173		Use And Care Guide		Appelez-nous	-
2	W10691698		Cooktop (black)   (Replaces: W10655916)			Immediately	$ 506.21
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.30
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 201.29
5	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 226.01
6	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 164.01
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 113.96
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
12	W10607641		Bracket, Cooktop (left)				$ 28.73
13	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
14	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
12A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
1A	W10667169		Tech Sheet, (english)		Appelez-nous	-
1B	W10667176		Tech Sheet, (french)		Appelez-nous	-
1C	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1D	W10400065		Guide, Quick Start (french)		Appelez-nous	-
1E	W10403812		Instructions, Installation		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	W11188418		Harness, Cooktop (left)				$ 191.46
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 183.65
NI	W11212183		Harness, Sensor				$ 201.98
NI	W11188460		Harness, Main				$ 157.76
