01 - Cover Sheet
02 - Cooktop Parts

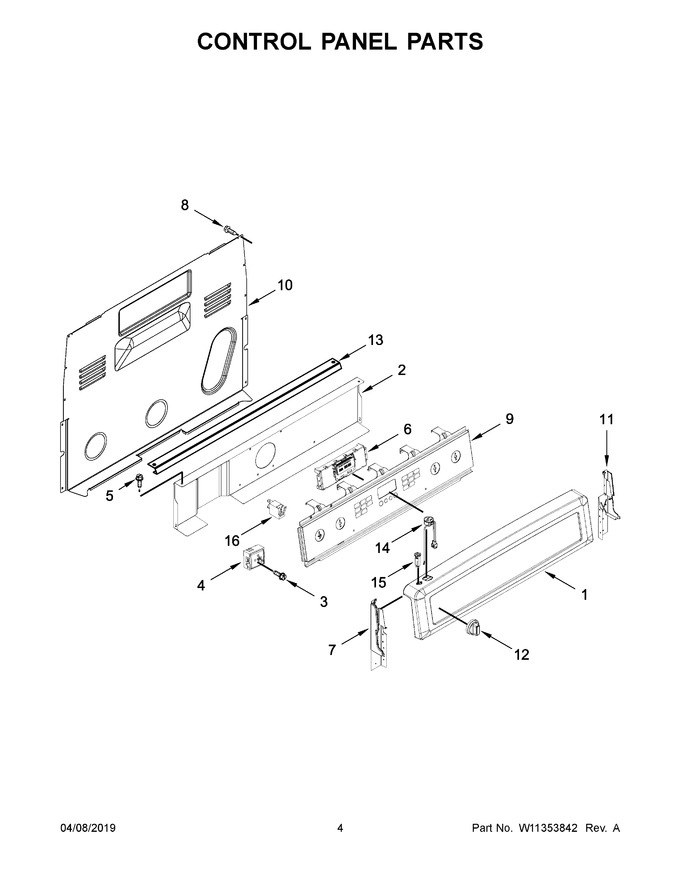

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10645851 | Console (stainless) |
|
$ 273.42 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 4 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 190.52 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 6 | WPW10340323 | Control (mrc) (Replaces: W10340323) |
|
Immediately | $ 350.63 | ||||
| 7 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 131.85 | |||||
| 8 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 12.65 | ||||
| 9 | W10884363 | Overlay, Active (black) |
|
$ 361.58 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 36.40 | |||||
| 12 | W11084052 | Knob (stainless) (Replaces: W10858252) |
|
Immediately | $ 71.60 | ||||
| 13 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 14 | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 16.62 | ||||
| 15 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 16 | WP8523265 | Hot Surface Indicator (Replaces: W10432504) |
|
Immediately | $ 77.68 | ||||
| 4A | W10917724 | Switch, Infinite (right Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 |
