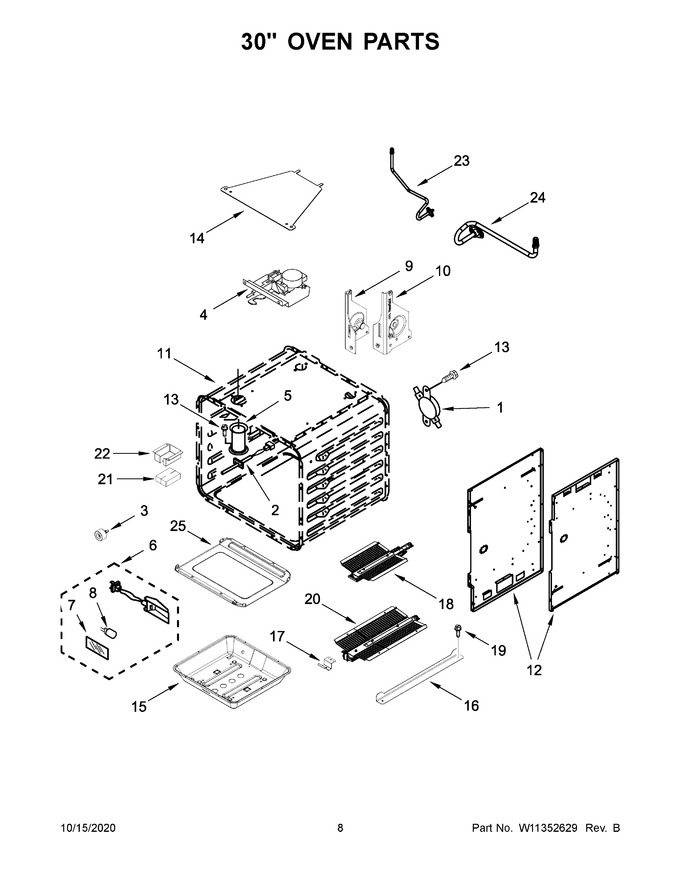

05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4450249		Thermostat (tod)   (Replaces: 4450249)			Immediately	$ 181.29
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 120.45
3	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 280.85
5	W10145743		Tube, Vent		Appelez-nous	-
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 95.43
7	W10169756		Lens, Light				$ 36.16
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W11096293		Receiver, Hinge (right)		Appelez-nous	-
11	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11320145		Chassis, Side (left)   (Replaces: W11102297)				$ 206.69
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
14	W10160858		Cover, Latch				$ 65.95
15	WPW10145744		Support, Bake Pan   (Replaces: W10145744)				$ 183.56
16	W10317437		Bracket, Broil Standoff		Appelez-nous	-
17	W10308040		Bracket, Bake Burner		Appelez-nous	-
18	W11643161		Burner, Bake   (Replaces: W10878504)			Immediately	$ 157.97
19	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
20	W11661180		Burner, Broil   (Replaces: W10311335)				$ 148.96
21	W11688851		Insulation, Broil Cover   (Replaces: W10311009)		Appelez-nous	-
22	W10310985		Cover, Broil		Appelez-nous	-
23	W11355244		Tube, Broil   (Replaces: W11109238)				$ 159.08
24	W11355919		Tube, Bake   (Replaces: W11106980)			Immediately	$ 153.47
25	W11661576		Pan, Oven Bottom   (Replaces: W10496809)			Immediately	$ 144.85
12A	W11320144		Chassis, Side (right)   (Replaces: W11102296)				$ 199.72
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11661177		Insulation, Wrap, 30   (Replaces: W10282810)				$ 139.28
NI	W11688580		Insulation, Back, 30   (Replaces: W10299350)		Appelez-nous	-
NI	W11684890		Insulation, Bottom   (Replaces: W10299354)		Appelez-nous	-
