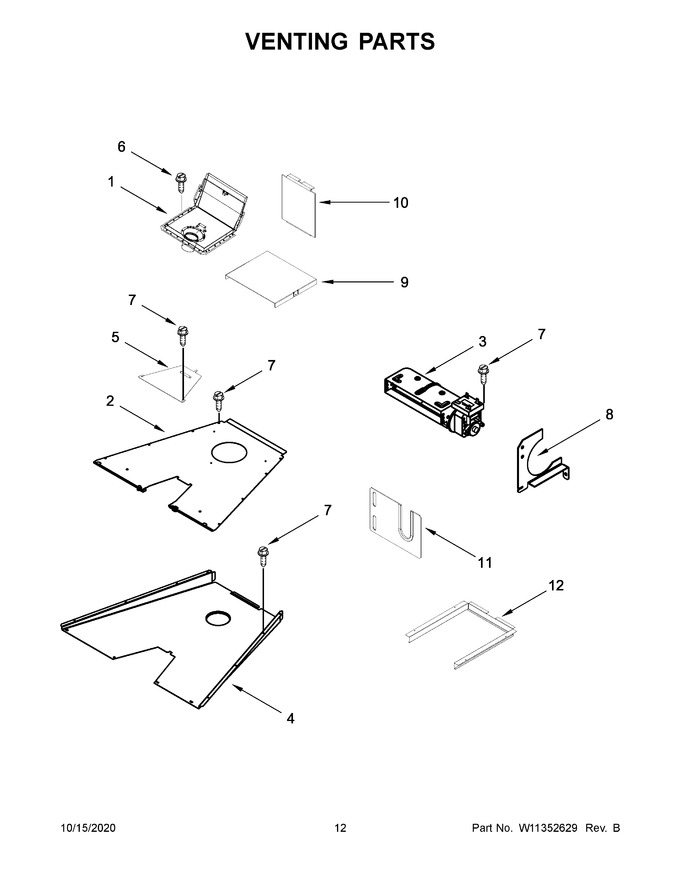

07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10340579		Vent, Chimney Box (30" / 36")		Appelez-nous	-
2	W11105221		Vent, Cooling Top (30")		Appelez-nous	-
3	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 217.39
4	W11091676		Vent, Cooling Bottom (30")		Appelez-nous	-
5	W11320405		Plate, Cooling Latch   (Replaces: W11109518)		Appelez-nous	-
6	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 6.47
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
8	W11047754		Bracket, Blower Mount		Appelez-nous	-
9	W10246086		Retainer, Insulation		Appelez-nous	-
10	W10246087		Insulation, Chimney		Appelez-nous	-
11	W11320407		Cover, Channel   (Replaces: W11106956)		Appelez-nous	-
12	W10145363		Duct, Primary Air (30")		Appelez-nous	-
12A	W10145364		Duct, Primary Air (18")		Appelez-nous	-
1A	W10340583		Vent, Chimney Box (18")		Appelez-nous	-
2A	W11113379		Vent, Cooling Top (18")		Appelez-nous	-
4A	W11113377		Vent, Cooling Bottom (18")		Appelez-nous	-
