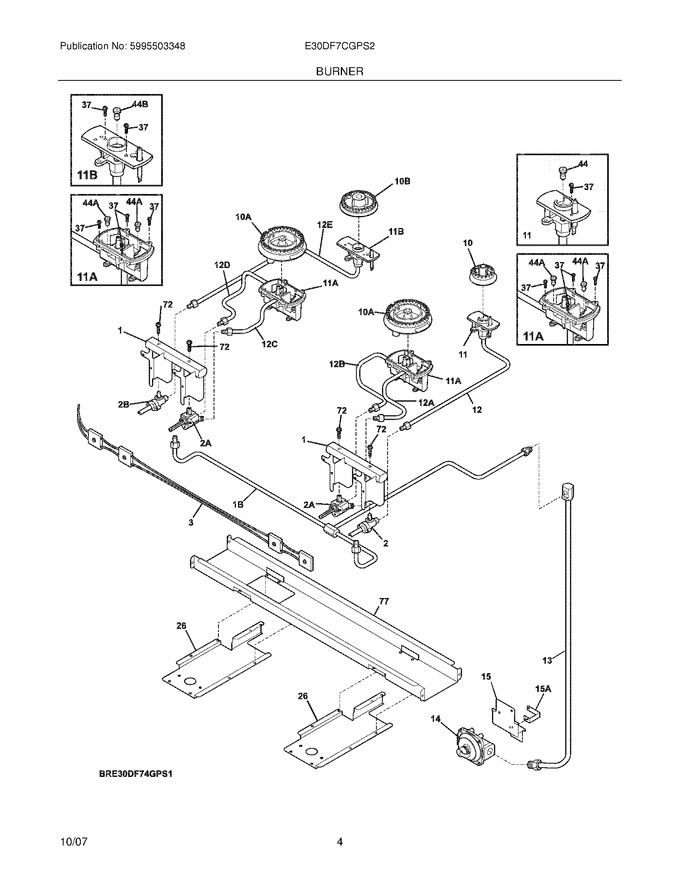

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	318360600		Tube,regulator ,to Manifold				$ 454.55
15	318376100		Bracket,regulator		Appelez-nous	-
26	318363800		Bracket,channel Mtg ,(2)		Appelez-nous	-
37	316540900		Screw,ignitor Assy Mt ,6-32 X .62   (Replaces: 316518100)			Immediately	$ 15.17
44	316523504		Orifice,top Burner ,5k				$ 19.69
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318355502		Bracket,channel Mtg.		Appelez-nous	-
15A	318376200		Bracket,regulator ,support		Appelez-nous	-
1B	318305402		Tube,manifold ,3/8 ,interconnect		Appelez-nous	-
44A	316523508		Orifice,top Burner ,18k				$ 13.23
44B	316523506		Orifice,top Burner ,14k		Appelez-nous	-
F1	318357801		Manifold,(2)				$ 88.63
F10	316510800		Burner,sealed ,5k				$ 106.41
F10A	316525400		Burner,sealed ,dual ,18k		Appelez-nous	-
F10B	316511200		Burner,sealed ,14k				$ 167.98
F11	316524800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 125.84
F11A	316525100		Ignitor/orifice Assy.,top Burner ,18k ,w/holder		Appelez-nous	-
F11B	316525000		Ignitor/orifice Assy.,top Burner ,14k ,w/holder				$ 101.85
F12	318366727		Tube,burner ,rh Rear ,5k		Appelez-nous	-
F12A	318366731		Tube,18k Burner ,rh Front				$ 29.98
F12B	318366732		Tube,18k Burner ,rh Front				$ 29.48
F12C	318366729		Tube,18k Burner ,lh Front				$ 28.64
F12D	318366730		Tube,18k Burner ,lh Front				$ 29.98
F12E	318366728		Tube,14k Burner ,lh Rear		Appelez-nous	-
F14	318122708		Regulator,pressure				$ 137.18
F2	316520700		Valve,burner ,5k				$ 126.87
F2A	316574900		Valve,top Burner ,18k ,dual Port   (Replaces: 316412510)				$ 242.16
F2B	316520703		Valve,burner ,14k				$ 146.01
F3	318232634		Wiring Harness,w/igntr Switch				$ 168.66
FNI	318199756		Wiring Harness,ignitor				$ 66.36
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318186917		Lp Conversion Kit				$ 79.70
NI	5303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-
