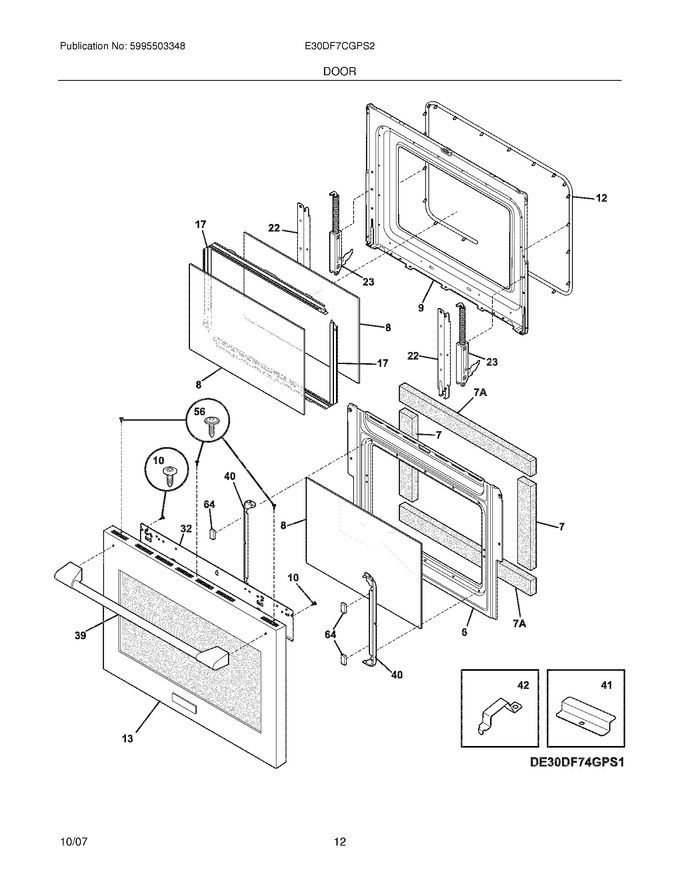

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260523		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259633		Liner,oven Door		Appelez-nous	-
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
12	318053132		Gasket,oven Door Seal   (Replaces: 318053131)			Immediately	$ 159.56
13	318344006		Door Assmebly,stainless/glass ,w/badge				$ 674.62
17	318264733		Spacer,glass ,(2)   (Replaces: 318264710)				$ 72.05
22	318353803		Retainer,hinge				$ 52.45
23	318244300		Hinge Assy				$ 224.86
32	318057202		Panel,heat Deflector ,door Handle		Appelez-nous	-
39	318392410		Handle,door		Appelez-nous	-
40	318242702		Bracket,glass Holder ,upper Door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	316433603		Label,anti-tip				$ 3.55
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
